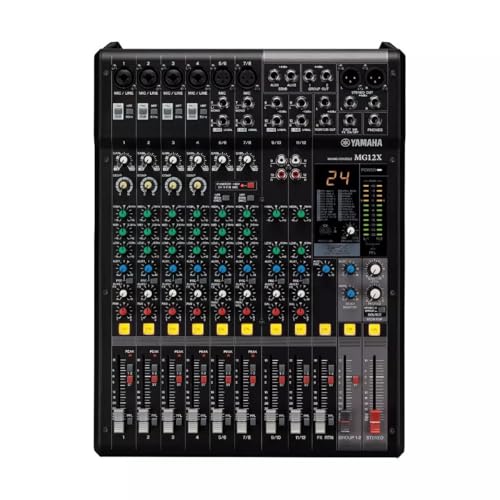

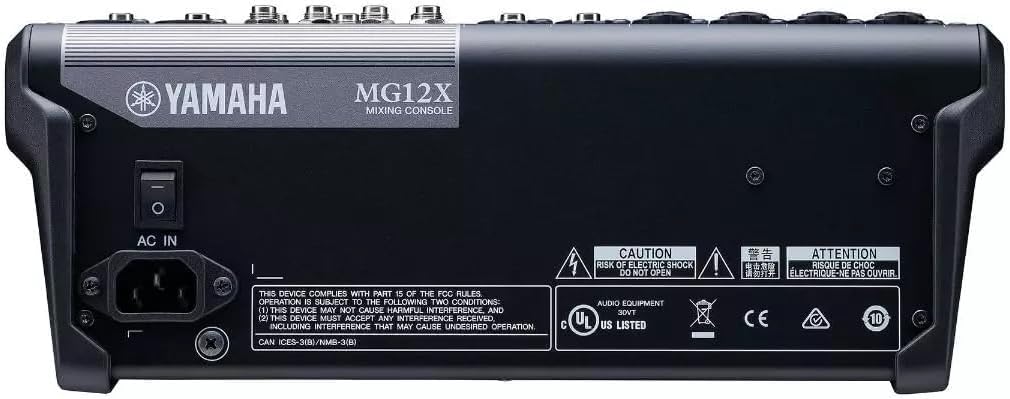

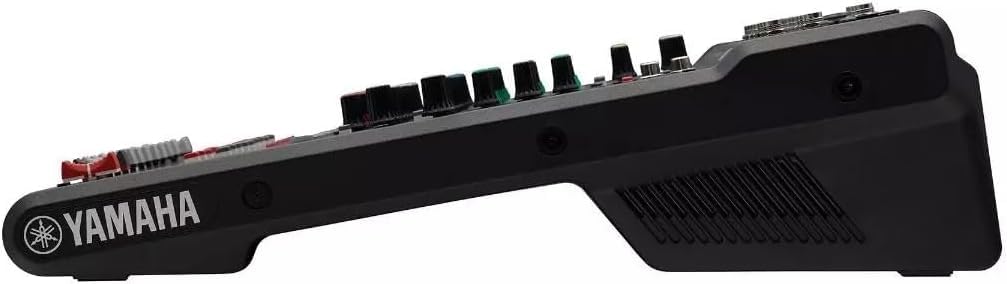

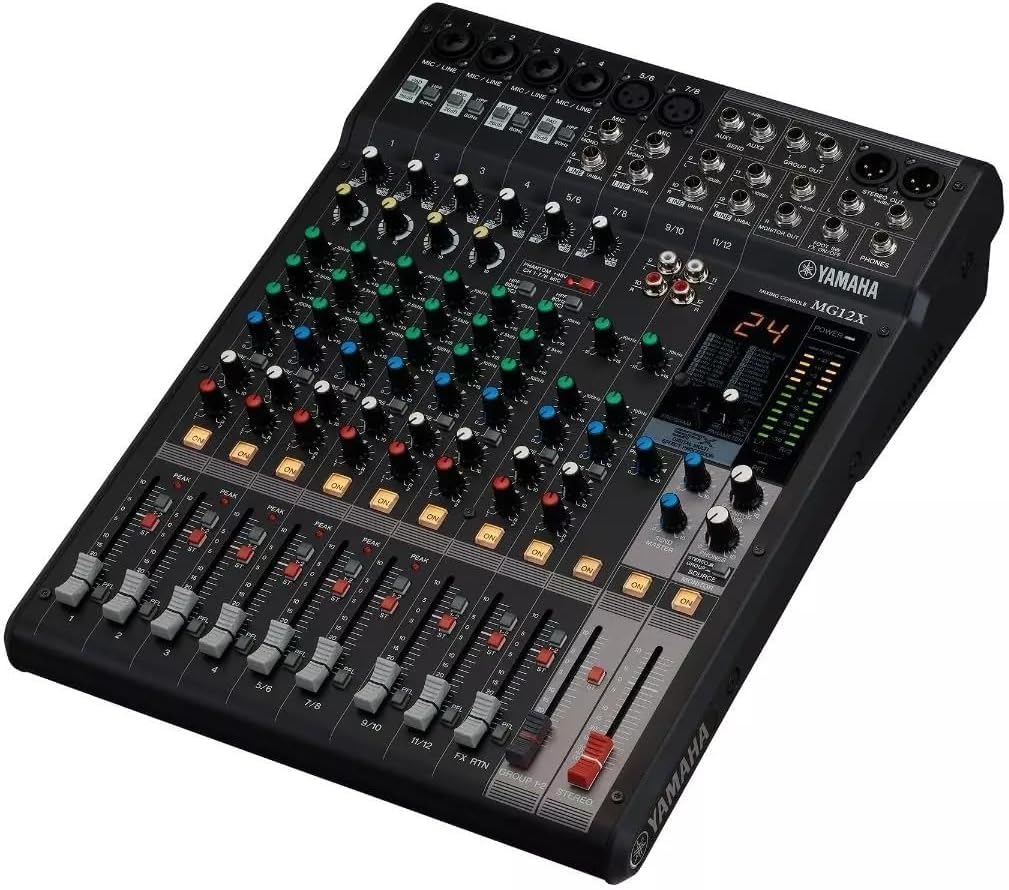

Yamaha MG12X CV 12-Channel Stereo Mixer with Effects
$344.24
SKU : YAM-MG12X-CV
30-Day Return Policy
Fast and free shipping
Description
FLEXIBLE 12-CHANNEL MIXING: Supports up to 6 microphones and 12 line inputs with 2 Group buses, a Stereo bus, and 2 AUX sends for live sound, recording, streaming, and installed audio systems
D-PRE PREAMPS & 3-BAND EQ: Yamaha Class-A D-PRE microphone preamps deliver clean, natural sound, while 3-band EQ on mono channels provides precise tone shaping
24 SPX EFFECTS: Professional reverb, delay, and other SPX effects are built in, with parameter control and optional FC5 footswitch compatibility for hands-free operation
1-KNOB COMPRESSORS: Quickly smooth vocal and instrument dynamics with Yamaha's simple one-knob compressor controls on mono channels
ROAD-READY DESIGN: A rugged metal chassis, universal power supply, and optional rack-mount compatibility make the MG12X ready for portable rigs and permanent installations
The Yamaha MG12X is a professional 12-channel analog mixer built for live sound, recording, streaming, podcasting, and installed audio. With support for up to six microphones and twelve line inputs, it gives you the flexibility to connect microphones, instruments, keyboards, playback devices, and more in one compact mixer.
Yamaha's renowned D-PRE Class-A microphone preamps capture vocals and instruments with clean, natural detail. Mono channels feature 3-band EQ, high-pass filters, PAD switches, and +48V phantom power, giving you the control to shape your mix and work with a wide range of microphones.
The built-in SPX processor provides 24 professional effects, including reverb, delay, and modulation, eliminating the need for external effects units. Yamaha's 1-Knob Compressors make it easy to achieve smooth, balanced dynamics on vocals and instruments with minimal adjustment.
A rugged metal chassis, balanced outputs, and an internal universal power supply make the MG12X ready for both portable and permanent setups. Whether you're mixing a live performance, recording a band, running a worship service, or creating online content, it delivers the reliability and sound quality expected from Yamaha's MG Series.
Specifications
Type: 12-Channel Mixing Console
Input Channels: 4 Mono (Mic/Line) + 2 Mono/Stereo (Mic/Line) + 2 Stereo (Line)
Bus: Stereo ×1, Group ×2, AUX ×2 (Including FX)
Preamps: Yamaha D-PRE Class-A
EQ: 3-Band (High, Mid, Low)
High-Pass Filter: 80Hz, 12dB/oct
Compression: 1-Knob COMP
Effects: SPX Processor, 24 Programs
Phantom Power: +48V
PAD Switch: 26dB (Mono Channels)
Outputs: Stereo Out ×2, Monitor Out ×1, Phones ×1, AUX Send ×2, Group Out ×2
Power Supply: Internal Universal AC 100-240V
Power Consumption: 22W
Construction: Metal Chassis
Optional Accessories: RK-MG12 Rack Mount Kit, FC5 Foot Switch
Dimensions: 12.1 × 4.6 × 16.6 in. (308 × 118 × 422 mm)
Weight: 9.3 lb (4.2 kg)
Country of Origin: Malaysia
D-PRE PREAMPS & 3-BAND EQ: Yamaha Class-A D-PRE microphone preamps deliver clean, natural sound, while 3-band EQ on mono channels provides precise tone shaping
24 SPX EFFECTS: Professional reverb, delay, and other SPX effects are built in, with parameter control and optional FC5 footswitch compatibility for hands-free operation
1-KNOB COMPRESSORS: Quickly smooth vocal and instrument dynamics with Yamaha's simple one-knob compressor controls on mono channels
ROAD-READY DESIGN: A rugged metal chassis, universal power supply, and optional rack-mount compatibility make the MG12X ready for portable rigs and permanent installations
The Yamaha MG12X is a professional 12-channel analog mixer built for live sound, recording, streaming, podcasting, and installed audio. With support for up to six microphones and twelve line inputs, it gives you the flexibility to connect microphones, instruments, keyboards, playback devices, and more in one compact mixer.
Yamaha's renowned D-PRE Class-A microphone preamps capture vocals and instruments with clean, natural detail. Mono channels feature 3-band EQ, high-pass filters, PAD switches, and +48V phantom power, giving you the control to shape your mix and work with a wide range of microphones.
The built-in SPX processor provides 24 professional effects, including reverb, delay, and modulation, eliminating the need for external effects units. Yamaha's 1-Knob Compressors make it easy to achieve smooth, balanced dynamics on vocals and instruments with minimal adjustment.
A rugged metal chassis, balanced outputs, and an internal universal power supply make the MG12X ready for both portable and permanent setups. Whether you're mixing a live performance, recording a band, running a worship service, or creating online content, it delivers the reliability and sound quality expected from Yamaha's MG Series.
Specifications
Type: 12-Channel Mixing Console
Input Channels: 4 Mono (Mic/Line) + 2 Mono/Stereo (Mic/Line) + 2 Stereo (Line)
Bus: Stereo ×1, Group ×2, AUX ×2 (Including FX)
Preamps: Yamaha D-PRE Class-A
EQ: 3-Band (High, Mid, Low)
High-Pass Filter: 80Hz, 12dB/oct
Compression: 1-Knob COMP
Effects: SPX Processor, 24 Programs
Phantom Power: +48V
PAD Switch: 26dB (Mono Channels)
Outputs: Stereo Out ×2, Monitor Out ×1, Phones ×1, AUX Send ×2, Group Out ×2
Power Supply: Internal Universal AC 100-240V
Power Consumption: 22W
Construction: Metal Chassis
Optional Accessories: RK-MG12 Rack Mount Kit, FC5 Foot Switch
Dimensions: 12.1 × 4.6 × 16.6 in. (308 × 118 × 422 mm)
Weight: 9.3 lb (4.2 kg)
Country of Origin: Malaysia
