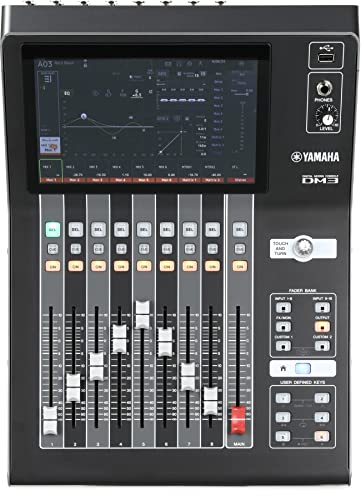

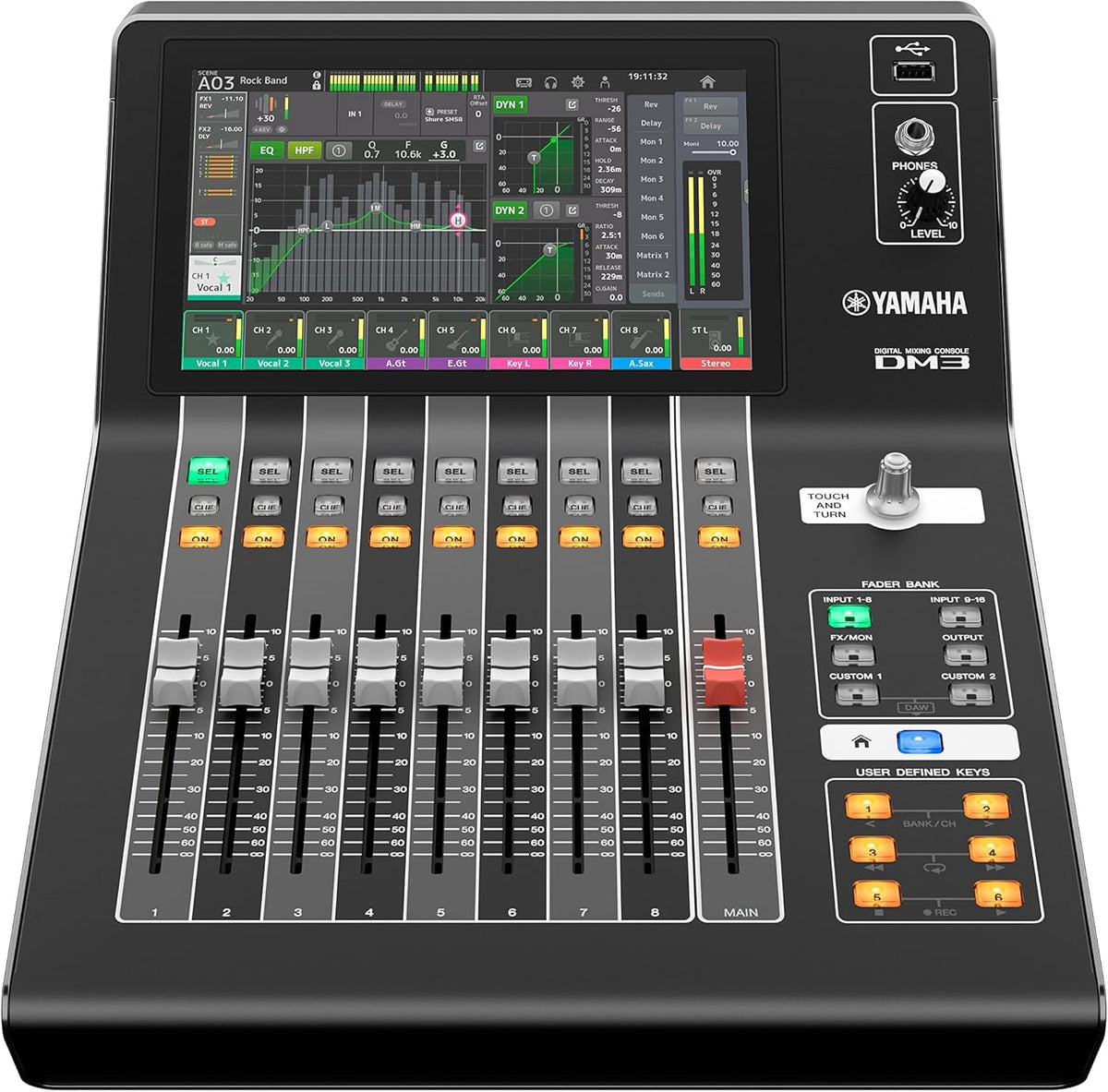

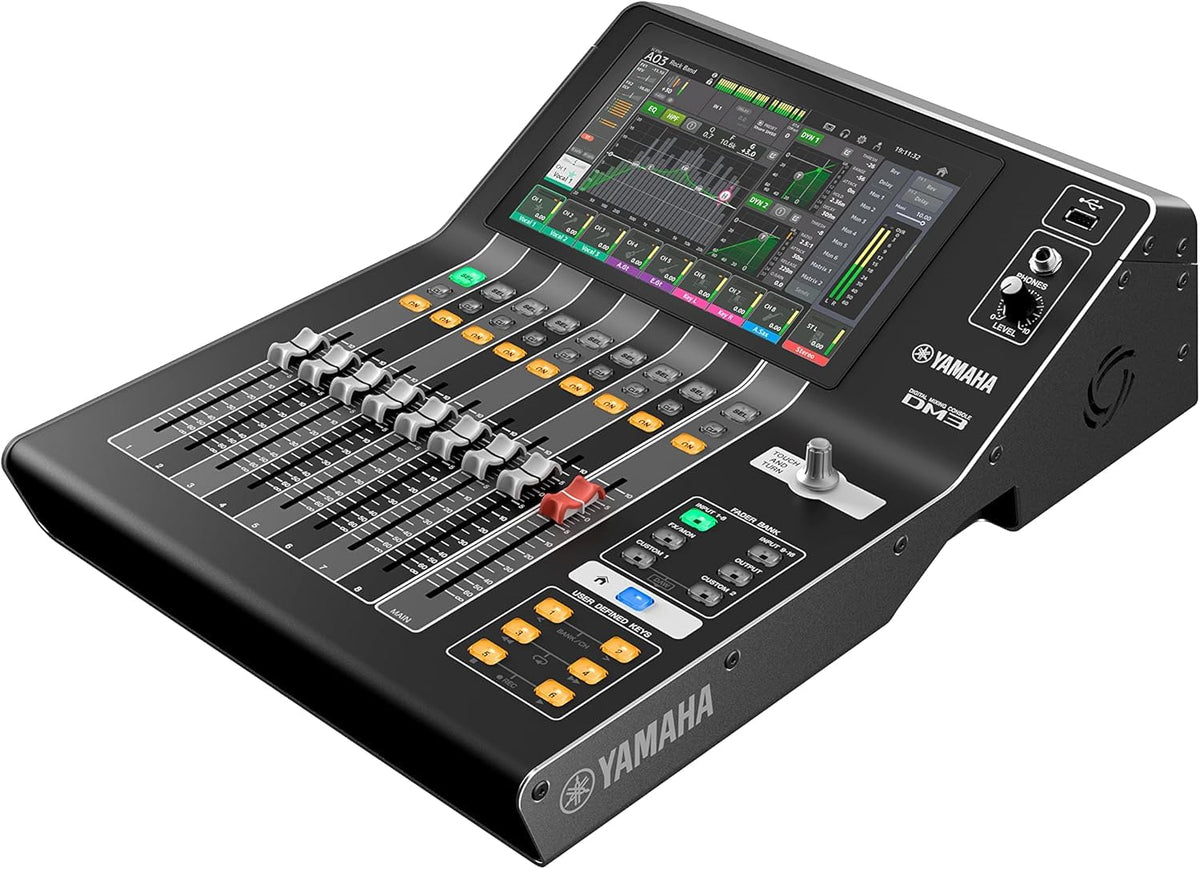

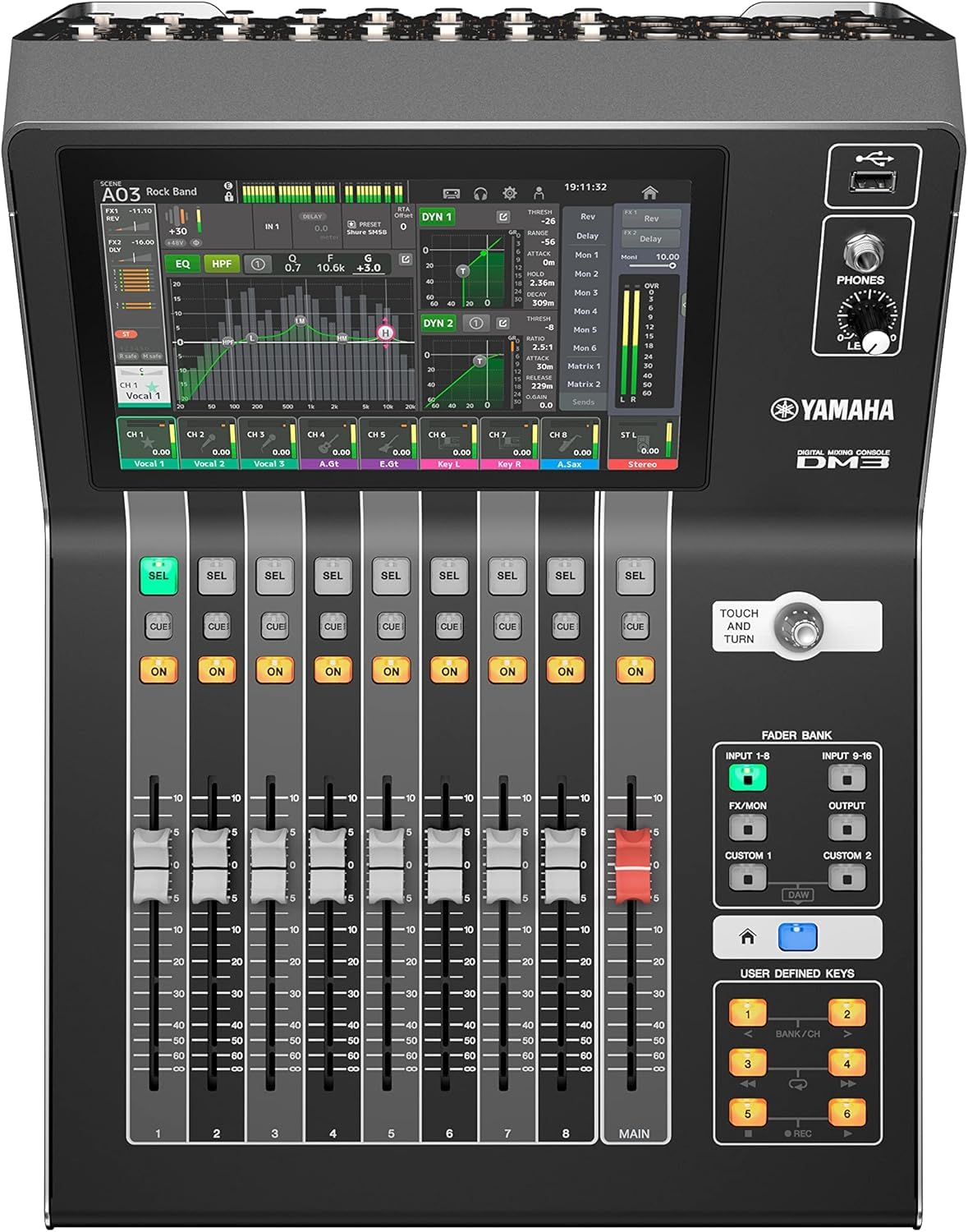

Yamaha DM3 Standard 22-Channel Digital Mixing Console
$1,799.99
SKU : YAM-DM3S
30-Day Return Policy
Fast and free shipping
Description
INTUITIVE TOUCH CONTROL: A 9-inch multi-touch screen, Touch and Turn rotary encoder, and 8 + 1 fader configuration provide quick access to essential mixing functions
96 KHZ AUDIO: Supports 48 kHz and 96 kHz sampling rates, providing transparent, uncolored sound for live mixing, streaming, recording, and installed applications
VERSATILE MIXING TOOLS: Includes six Mix buses, two Matrix buses, two FX buses, flexible patching, 18 effects, and graphic EQ on Mix and Stereo channels
USB RECORDING SUPPORT: Records and plays back up to 18 tracks through USB to Host, with convenient two-track recording and playback using a USB storage device
COMPACT PORTABLE DESIGN: Combines professional features and robust construction in a compact 143 lb body suited for live venues, studios, streaming setups, and installations
The Yamaha DM3 Standard is a compact 22-channel digital mixing console built for live sound, streaming, recording, and installed applications. It combines 96 kHz audio, flexible patching, and professional mixing tools in a portable 14.3 lb design. A 9-inch multi-touch screen, eight channel faders, one main fader, and the Touch and Turn rotary encoder provide fast, intuitive control. The console offers 16 mic/line inputs, eight XLR outputs, 18-channel USB recording and playback, two multi-effects processors with 18 effect types, and graphic EQ on Mix 1-6 and Stereo channels. QuickPro Presets, Scene Presets, DM3 Editor, StageMix, MonitorMix, and DAW Remote help streamline setup and operation across a wide range of environments. The DM3 Standard provides the core DM3 Series capabilities without Dante connectivity.
Mixing Capacity: 16 Mono + 1 Stereo + 2 FX Return Input Channels
Mix Buses: 6
Matrices: 2, Supports Input to Matrix
Stereo Buses: 1
FX Buses: 2
Cue Buses: 1

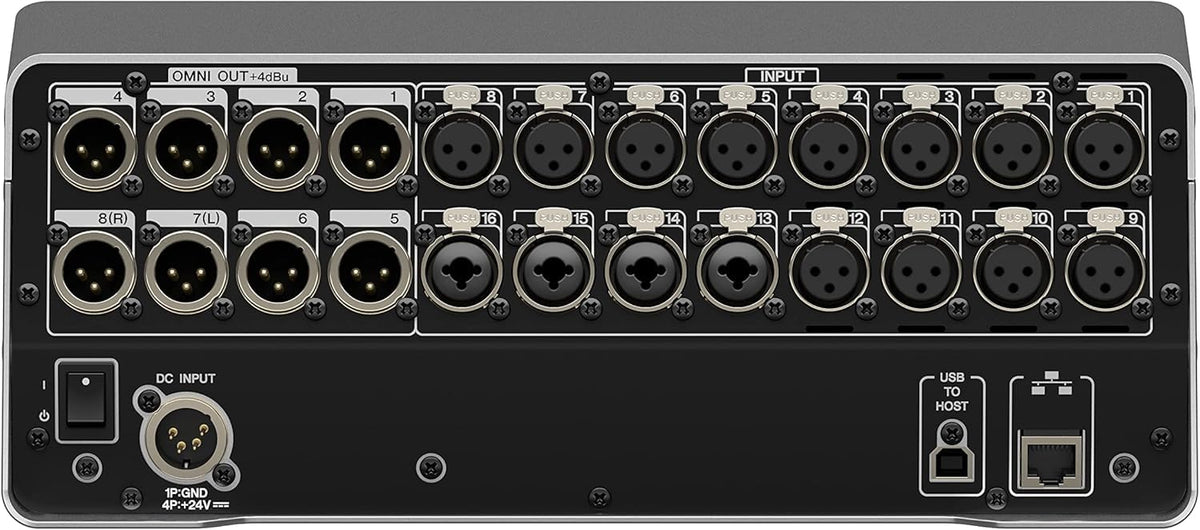

Analog Inputs: 16 Mic/Line, 12 XLR + 4 XLR/TRS Combo
Analog Outputs: 8 XLR
Network: 1 RJ-45
USB to Host: 1 USB Type-B, USB 2.0
USB to Device: 1 USB Type-A
Phones: 1 TRS Phones
User Interface: 9-Inch Multi-Touch Screen, 9 Faders, Touch and Turn Rotary Encoder
PC/Mac Recording: 18 Tracks
PC/Mac Playback: 18 Tracks
USB Storage Recording: 2 Tracks
USB Storage Playback: 2 Tracks
Sampling Frequency: 96 kHz / 48 kHz
Dimensions: 12.6 x 5.6 x 18.0 Inches
Net Weight: 14.3 lb
96 KHZ AUDIO: Supports 48 kHz and 96 kHz sampling rates, providing transparent, uncolored sound for live mixing, streaming, recording, and installed applications
VERSATILE MIXING TOOLS: Includes six Mix buses, two Matrix buses, two FX buses, flexible patching, 18 effects, and graphic EQ on Mix and Stereo channels
USB RECORDING SUPPORT: Records and plays back up to 18 tracks through USB to Host, with convenient two-track recording and playback using a USB storage device
COMPACT PORTABLE DESIGN: Combines professional features and robust construction in a compact 143 lb body suited for live venues, studios, streaming setups, and installations
The Yamaha DM3 Standard is a compact 22-channel digital mixing console built for live sound, streaming, recording, and installed applications. It combines 96 kHz audio, flexible patching, and professional mixing tools in a portable 14.3 lb design. A 9-inch multi-touch screen, eight channel faders, one main fader, and the Touch and Turn rotary encoder provide fast, intuitive control. The console offers 16 mic/line inputs, eight XLR outputs, 18-channel USB recording and playback, two multi-effects processors with 18 effect types, and graphic EQ on Mix 1-6 and Stereo channels. QuickPro Presets, Scene Presets, DM3 Editor, StageMix, MonitorMix, and DAW Remote help streamline setup and operation across a wide range of environments. The DM3 Standard provides the core DM3 Series capabilities without Dante connectivity.
Mixing Capacity: 16 Mono + 1 Stereo + 2 FX Return Input Channels
Mix Buses: 6
Matrices: 2, Supports Input to Matrix
Stereo Buses: 1
FX Buses: 2
Cue Buses: 1
Analog Inputs: 16 Mic/Line, 12 XLR + 4 XLR/TRS Combo
Analog Outputs: 8 XLR
Network: 1 RJ-45
USB to Host: 1 USB Type-B, USB 2.0
USB to Device: 1 USB Type-A
Phones: 1 TRS Phones
User Interface: 9-Inch Multi-Touch Screen, 9 Faders, Touch and Turn Rotary Encoder
PC/Mac Recording: 18 Tracks
PC/Mac Playback: 18 Tracks
USB Storage Recording: 2 Tracks
USB Storage Playback: 2 Tracks
Sampling Frequency: 96 kHz / 48 kHz
Dimensions: 12.6 x 5.6 x 18.0 Inches
Net Weight: 14.3 lb
