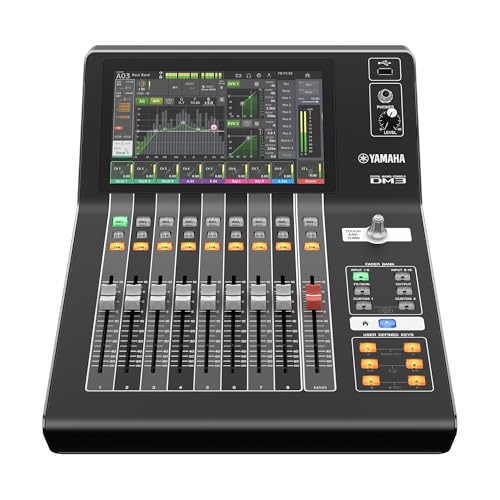

Yamaha DM3-D 22-Channel Ultracompact Digital Mixing Console with Dante
$2,199.99
SKU : YAM-DM3-D
30-Day Return Policy
Fast and free shipping
Description
DANTE CONNECTIVITY: Provides 16 Dante inputs and 16 outputs through primary and secondary etherCON ports for flexible integration with compatible networked audio systems
INTUITIVE TOUCH CONTROL: A 9-inch multi-touch screen, Touch and Turn encoder, and 8 + 1 fader configuration provide fast access to essential mixing functions
96 KHZ AUDIO: Supports 48 kHz and 96 kHz sampling rates, continuing Yamaha's focus on transparent, uncolored sound for mixing, recording, and streaming
VERSATILE MIXING TOOLS: Includes six Mix buses, two Matrix buses, two FX buses, flexible patching, and two multi-effects processors with 18 effect types
COMPACT PORTABLE DESIGN: Combines professional features, robust construction, and a 143 lb body for convenient transport between live venues, studios, and streaming setups
The Yamaha DM3-D is a compact 22-channel digital mixing console with Dante connectivity, designed for live sound, streaming, recording, and installed applications. It combines 96 kHz audio, flexible routing, and professional mixing tools in a portable 14.3 lb design. A 9-inch multi-touch screen, eight channel faders, one main fader, and the Touch and Turn rotary encoder provide fast, intuitive control. The console supports 16 analog mic/line inputs, eight analog outputs, 16 Dante inputs and outputs, and 18-channel USB recording and playback. Two multi-effects processors offer 18 effect types, while QuickPro Presets, Scene Presets, DM3 Editor, StageMix, and MonitorMix help streamline setup and operation across a wide range of environments.
Mixing Capacity: 16 Mono + 1 Stereo + 2 FX Return Input Channels
Mix Buses: 6
Matrices: 2, Supports Input to Matrix
Stereo Buses: 1
FX Buses: 2
Cue Buses: 1

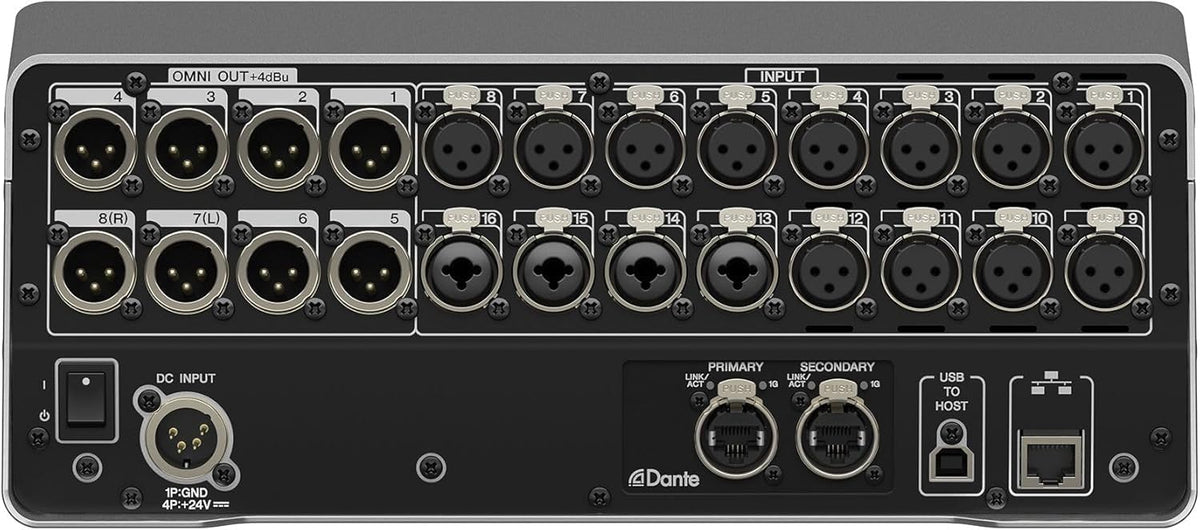

Analog Inputs: 16 Mic/Line, 12 XLR + 4 XLR/TRS Combo
Analog Outputs: 8 XLR
Dante: 2 etherCON Primary/Secondary Ports
Dante I/O: 16 Inputs, 16 Outputs
USB to Host: USB Type-B, USB 2.0
USB to Device: USB Type-A
User Interface: 9-Inch Multi-Touch Screen, 9 Faders, Touch and Turn Rotary Encoder
PC/Mac Recording and Playback: 18 Tracks
USB Storage Recording and Playback: 2 Tracks
Sampling Frequency: 96 kHz / 48 kHz
Effects: 18 Types
Dimensions: 12.6 x 5.6 x 18.0 Inches
Net Weight: 14.3 lb
Included Accessories: Owner's Manual, Power Adapter, Download Information
INTUITIVE TOUCH CONTROL: A 9-inch multi-touch screen, Touch and Turn encoder, and 8 + 1 fader configuration provide fast access to essential mixing functions
96 KHZ AUDIO: Supports 48 kHz and 96 kHz sampling rates, continuing Yamaha's focus on transparent, uncolored sound for mixing, recording, and streaming
VERSATILE MIXING TOOLS: Includes six Mix buses, two Matrix buses, two FX buses, flexible patching, and two multi-effects processors with 18 effect types
COMPACT PORTABLE DESIGN: Combines professional features, robust construction, and a 143 lb body for convenient transport between live venues, studios, and streaming setups
The Yamaha DM3-D is a compact 22-channel digital mixing console with Dante connectivity, designed for live sound, streaming, recording, and installed applications. It combines 96 kHz audio, flexible routing, and professional mixing tools in a portable 14.3 lb design. A 9-inch multi-touch screen, eight channel faders, one main fader, and the Touch and Turn rotary encoder provide fast, intuitive control. The console supports 16 analog mic/line inputs, eight analog outputs, 16 Dante inputs and outputs, and 18-channel USB recording and playback. Two multi-effects processors offer 18 effect types, while QuickPro Presets, Scene Presets, DM3 Editor, StageMix, and MonitorMix help streamline setup and operation across a wide range of environments.
Mixing Capacity: 16 Mono + 1 Stereo + 2 FX Return Input Channels
Mix Buses: 6
Matrices: 2, Supports Input to Matrix
Stereo Buses: 1
FX Buses: 2
Cue Buses: 1
Analog Inputs: 16 Mic/Line, 12 XLR + 4 XLR/TRS Combo
Analog Outputs: 8 XLR
Dante: 2 etherCON Primary/Secondary Ports
Dante I/O: 16 Inputs, 16 Outputs
USB to Host: USB Type-B, USB 2.0
USB to Device: USB Type-A
User Interface: 9-Inch Multi-Touch Screen, 9 Faders, Touch and Turn Rotary Encoder
PC/Mac Recording and Playback: 18 Tracks
USB Storage Recording and Playback: 2 Tracks
Sampling Frequency: 96 kHz / 48 kHz
Effects: 18 Types
Dimensions: 12.6 x 5.6 x 18.0 Inches
Net Weight: 14.3 lb
Included Accessories: Owner's Manual, Power Adapter, Download Information
