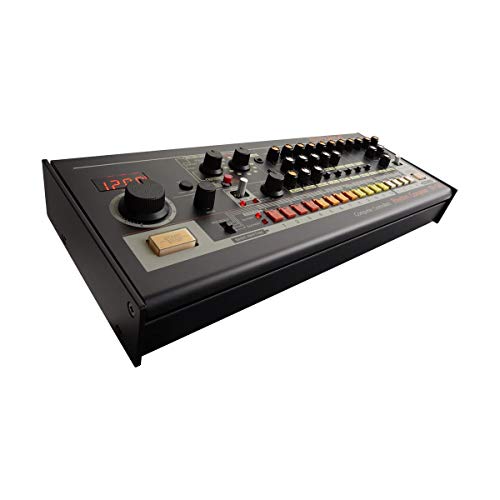

Roland TR-08 Rhythm Composer

Ultra-compact recreation of the legendary TR-808 drum machine

Retains the sound, character, and user interface of the original TR-808

Hands-on control including tone, level, tuning, and decay

Added Compressor, Gain, Tune, and Pan for selected instruments

Programmable via classic Step and Tap write modes

The TR-08 is an obsessively detailed and faithful replica of the legendary TR-808-easily the most famous and influential drum machine ever made. After creating a monumental shift in the sound of music, the Ò808Ó has continued to shape and define entire genres. Beloved by musicians and producers the world over, itÕs one of the most revered and sought-after electronic musical instruments of all time. The TR-08 brings the look, sound, and feel of the original 808-with stunning accuracy-to the Roland Boutique format. It blends attention to detail and respect for legacy with modern convenience and reliability.
User Memory: Pattern, Intro/Fill-In: 16 Bank (12x16 Pattern, 4x16 Intro/Fill-In)
Steps: 16 steps with 16 sub steps
Instruments: BD: BASS DRUM
SD: SNARE DRUM
LC: LOW CONGA, LT: LOW TOM
MC: MID CONGA, MT: MID TOM
HC: HI CONGA, HT: HI TOM
CL: CLAVES, RS: RIM SHOT
MA: MARACAS, CP: HAND CLAP
CB: COW BELL
CY: CYMBAL
OH: OPEN HI HAT
CH: CLOSED HI HAT
Effects: Compressor
Indicators: 7 segments, 4 characters (LED)
Connectors: TRIGGER OUT jack: mono miniature phone type
PHONES jack: stereo miniature phone type
USB port: Micro-B type (Audio, MIDI)
Power Supply: Rechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
USB bus power
Current Draw: 500 mA (USB bus power)
Expected battery life under continuous use: Rechargeable Ni-MH battery: Approx. 6 hours
Width: 12-1/8 inches
Depth: 5-1/8 inches
Height: 2-1/16 inches
Weight (including batteries and Boutique Dock): 2 lbs 14 oz
