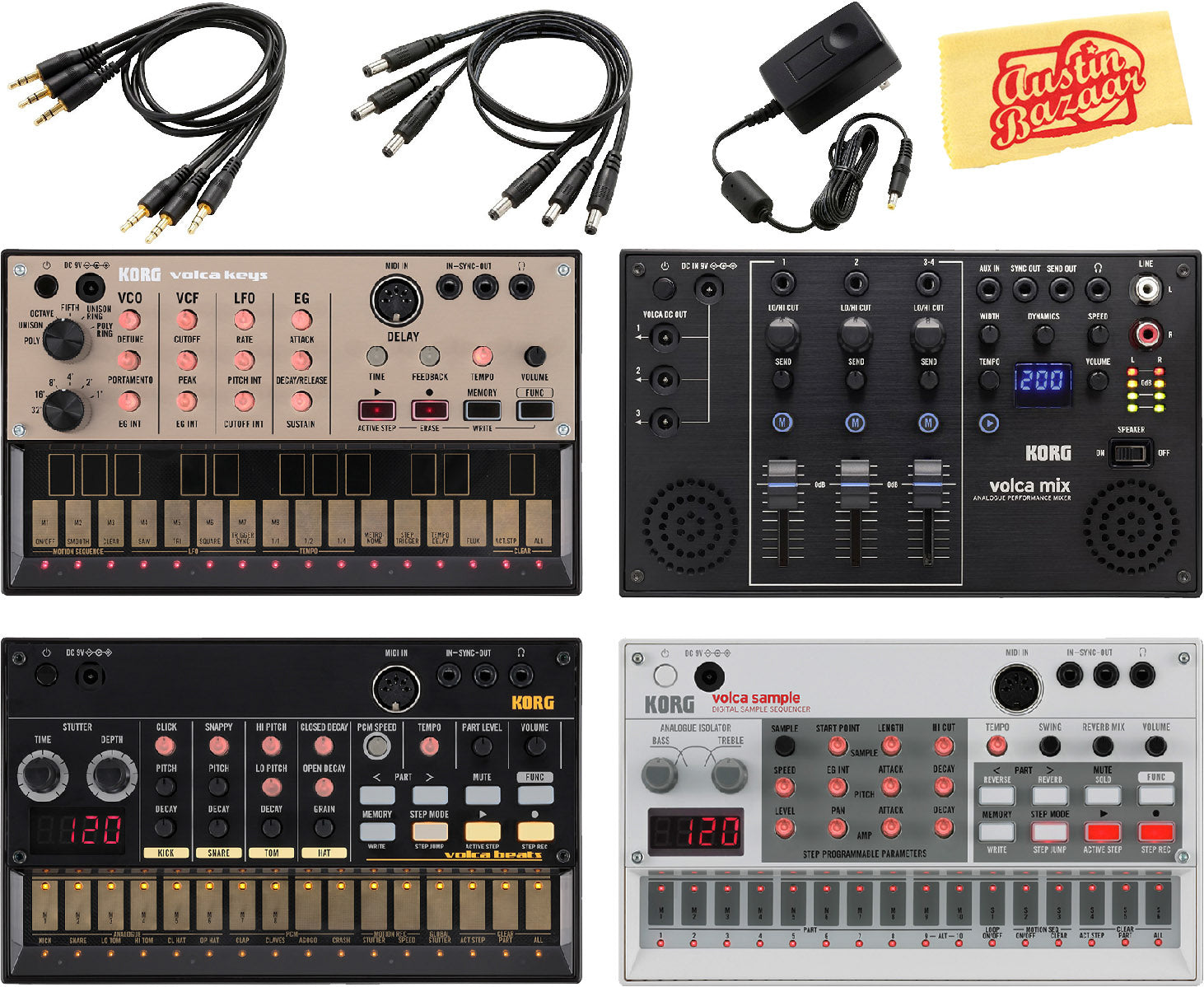

Korg Volca Mix Analogue Performance Mixer w/ Volca Beats, Sample, Keys

Output and monitor capabilities for use on stage, plus stereo speakers for maximum portability

Powerful master chain

Connect an external effect unit for further variety

DC outlets you use three volca units simultaneously

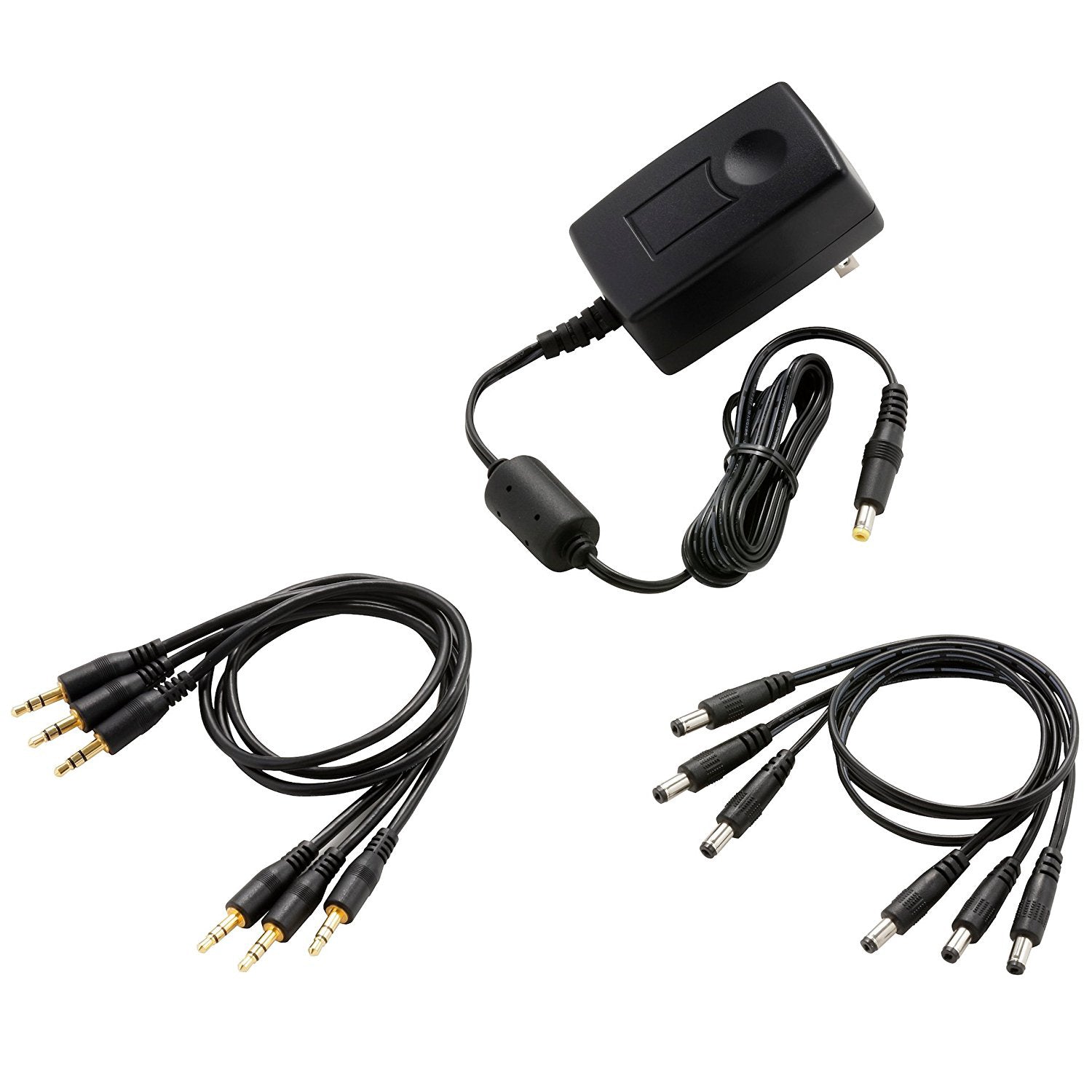

The volca mix comes with AC adapter, DC-DC cables, and audio cables included

Adding value to your purchase, Austin Bazaar bundles your instrument with necessary accessories. Everything you need to start playing immediately comes in one box. Save yourself the hassle and save some money while you're at it. An Austin Bazaar polishing cloth is included so you can keep your new instrument in mint condition.

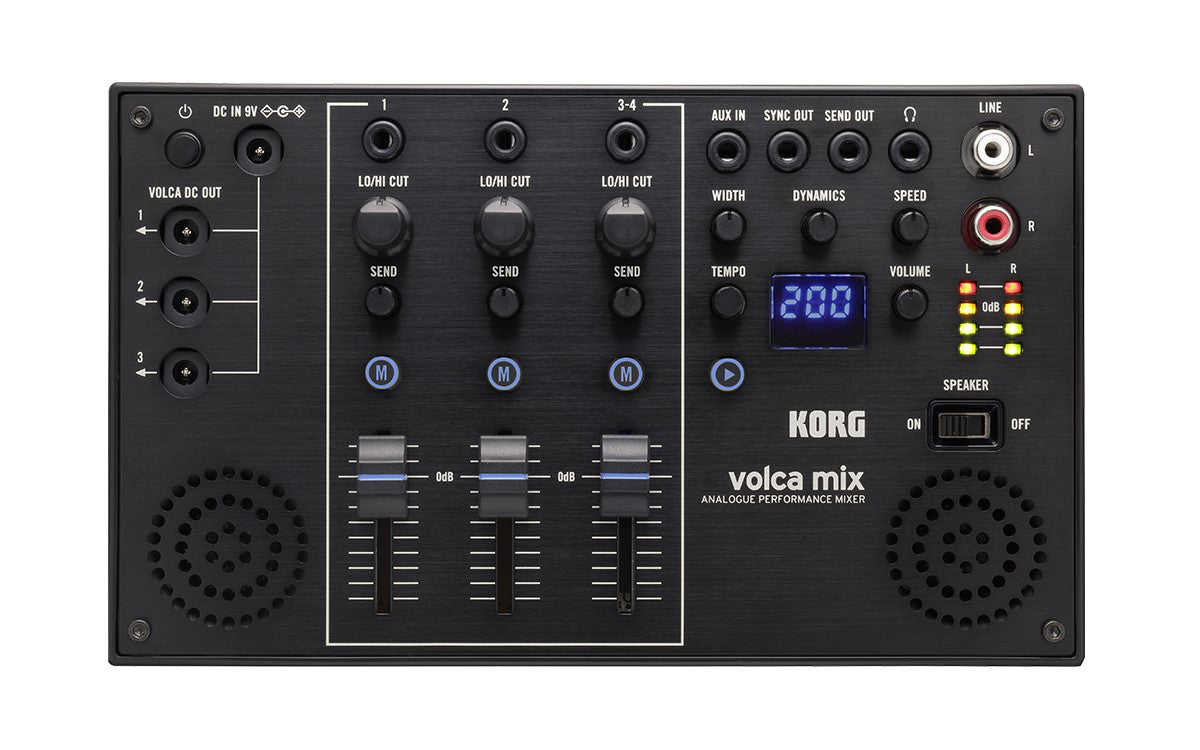

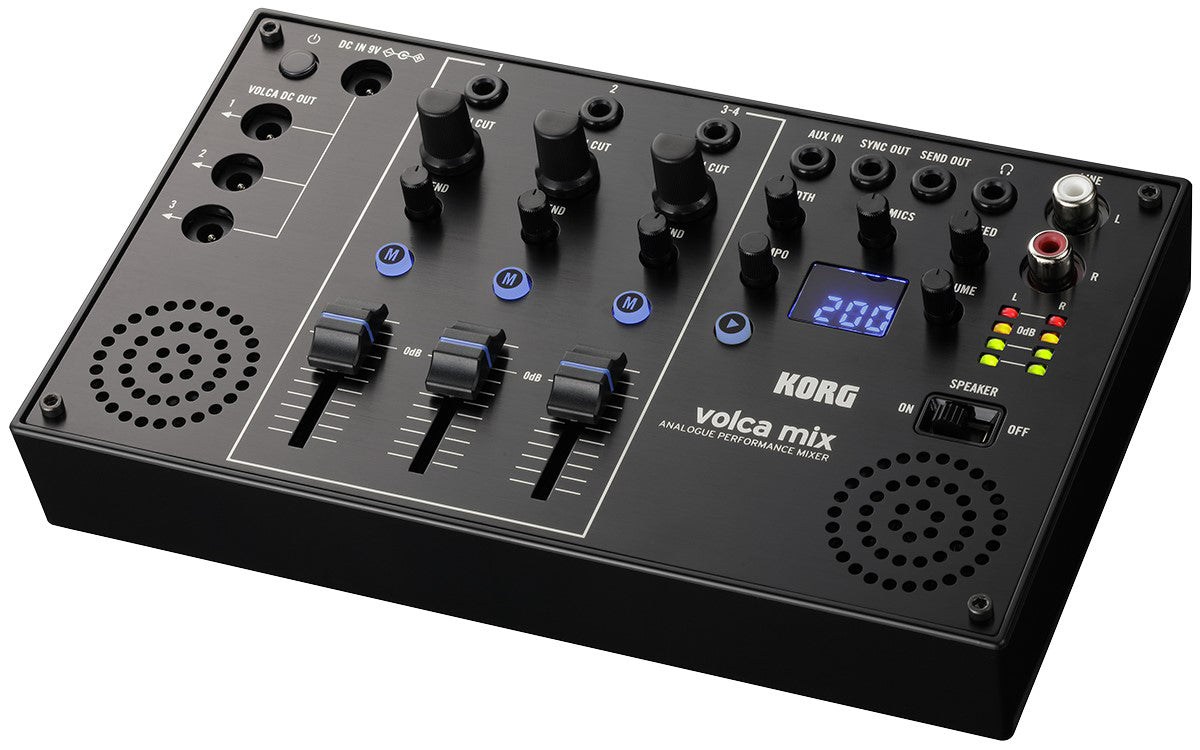

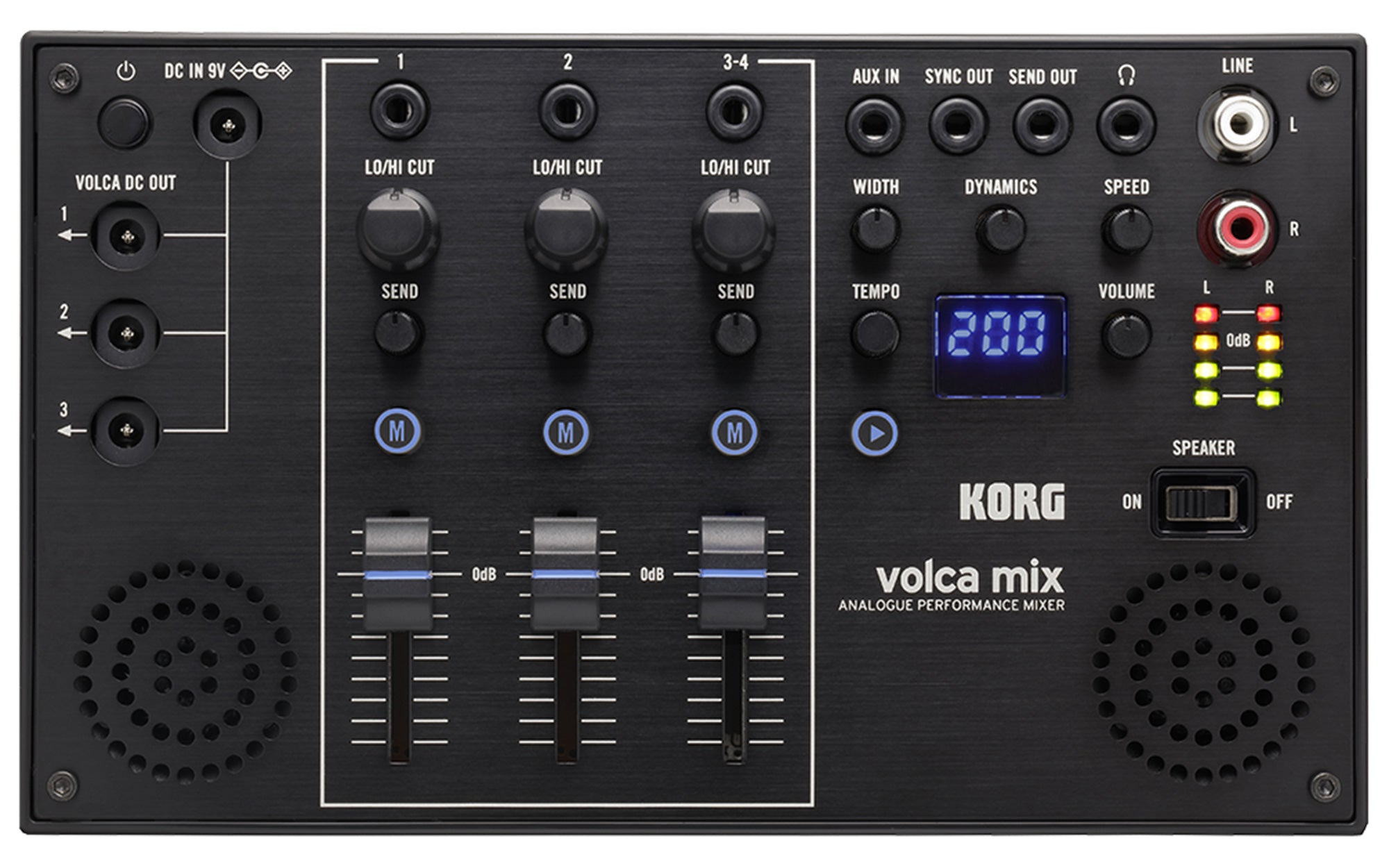

The volca mix is the long-awaited mixer for the volca series. The volca mix is a four-channel analogue performance mixer that lets you construct a live setup combining multiple volca units. Volume faders are easy to control, plus crisp-sounding LO/HI CUT filters, and a master chain that radically transforms the sound. In addition to the sync function found on all volcas, there are also DC output connectors that can supply power for up to three volca units. Numerous functions to facilitate your on-stage volca performances have been packed into a high-quality aluminum-paneled body, reminiscent of a high-end DJ mixer.

The volca mix will unlock the maximum potential of the volca series.

COMPACT MULTI-FUNCTION FOUR-CHANNEL MIXER

An analog mixer for performance.
The volca mix is a four-channel analog mixer with an intuitive interface and plenty of connectivity. It provides two mono inputs and one stereo input, perfect for connecting three volca units. The jacks are mini-jacks, allowing you to make connections with just one stereo mini-cable from the headphone out of each volca unit. The channel volumes use vertical faders that allow precise control. The gain can be boosted to adjust the mix balance, and mute buttons are also provided. Each channel is also equipped with a LO/HI CUT filter that lets you control the low and high frequency ranges with a single knob. The pristine, natural-sounding filters that you expect from analog gear give you complete control over the character of your sound.

Output and monitor capabilities for use on stage, plus stereo speakers for maximum portability

Mixer

Mixer Type: Four channel analogue mixer
Number of Channels: Two monaural*1, one stereo*2 *1: Monaural output volca: volca keys, volca bass, volca beats, volca kick *2: Stereo output volca: volca sample, volca fm
Channel Controls: Lo/Hi Cut, Send Level, Mute, Volume (Available to boost +6 dB gain)
Bus: Four channels analogue mix bus, monaural mix send bus, stereo AUX In/Return bus
Master: Volume

Input/Output

Mixer Input: Mixer In x 3 (1/8" [3.5 mm] stereo mini jack, 0dBu)
AUX: AUX In (1/8" [3.5 mm] stereo mini jack, 0dBu)
Send: Send Out (1/8" [3.5 mm] stereo mini jack, 0dBu)
Sync: Sync Out (1/8" [3.5 mm] stereo mini jack, Output Level: 5 V)
Audio Output: LINE OUT (L/R, RCA pin jack, Max 11.1 dBu) Headphone (1/8" [3.5 mm] stereo mini jack)
Speaker: Built-in stereo speakers, On/Off

Power

Power AC adapter (DC 9V)
Current Consumption: 300 mA
Output Power: VOLCA DC OUT x 3 (Connect with included DC-DC cable, up to 800 mA in total, 9 V)

Others

Dimensions (W x D x H): 193 mm x 115 mm x 45 mm/7.60" x 4.53" x 1.77" (including knobs)
Weight: 350g/12.35 oz.
Included Items: AC adapter, DC-DC cable x 3, Audio cable x 3
Master Effects: Analog Stereo Width Expander (Width), Analog Dynamic Range Compressor (Dynamics, Speed)
Sync Controls: Play, Tempo
