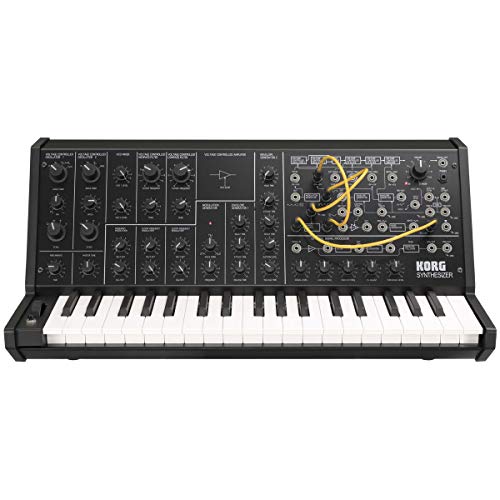

Korg MS-20 Mini Monophonic Synthesizer - Black

Painstakingly replicates the original MS-20 and reproduces it's distinctive synthesis via two oscillators with ring modulation, and envelope generators with hold and delay.

Use the pitch or volume of an external audio source to control the synthesizer; input an electric guitar and use the MS-20 mini as a guitar synthesizer or input a mic and use it as a vocal synthesizer.

MIDI IN jack for receiving note messages, and a USB-MIDI connector that can transmit and receive note messages

Patch cables have been changed from 1/4" phone plugs to mini-plugs, and the newly-designed keyboard is also 86% of the original size.

Includes power supply, owner's manual and sound set list

Korg s MS-20 monophonic synthesizer, first introduced in 1978, is still a coveted instrument to this day, thanks to its thick, robust sound, its powerful, iconic analog filter, and its versatile patching options. Over 300,000 people have enjoyed the distinct MS-20 sounds from the original, from Korg s MS-20 plug-in synth, or the iMS-20 iPad app.

Today, the sounds of the MS-20 have been reborn in hardware, as the MS-20 Mini. The same engineers who developed the original MS-20 have perfectly reproduced its circuitry and fit into a body that s been shrunk to 86% of the original size, yet retains the distinctive look of the original.
The MS-20 mini will amaze you with its absolutely authentic analog synth sound.

The MS-20 mini painstakingly replicates the original MS-20. A development team led by the original engineers themselves worked to recreate the original circuitry, and when it was necessary to substitute a part, these engineers made the decisions based on careful listening, in order to reproduce the original sound faithfully. In fact, the sound of the MS-20 mini has a somewhat bright and extreme quality to it because its sound is that of an original MS-20 in mint condition at the time it went on sale, before any of the components aged.

2VCO / 2VCF / 2VCA / 2EG / 1LFO structure
The MS-20 mini reproduces the distinctive synthesis of the MS-20; two oscillators with ring modulation, and envelope generators with hold and delay. The VCA maintains the basic design of the original, but it s been modified to produce less noise than the original.

Self-oscillating high-pass/low-pass filters with distinctive distortion
One of the greatest characteristics of the MS-20 was its powerful filters, which provided resonance on both the high-pass and the low-pass. Maximizing the resonance would cause the filter to self-oscillate like an oscillator, producing a distinct
