Boss VE-500 Vocal Performer

Packing professional sound quality and serious BOSS DSP muscle, the VE-500 delivers sophisticated harmony and pitch correction functions that automatically track the chords you play on your guitar. It also includes a powerful vocoder and core sound-enhancement tools, plus world-class reverb, delay, and modulation sounds and specialty effects like distortion, filtering, and many others. And with programmable memories, you can instantly recall favorite setups for any song or style. The VE-500 is the perfect addition to the pedalboard of any singing guitarist, providing top-flight vocal processing that fits right alongside your standard guitar effects.

PRODUCT SPECS

Sampling Frequency: 48 kHz
AD Conversion: 32 bits + AF method, AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA Conversion: 32 bits
Processing: 32-bit floating point
Patches: 99 (User) + 50 (Preset)
Nominal Input Level: MIC IN: -40 dBu (Adjustable), INST IN: -10 dBu
Input Impedance: MIC IN: 4 k ohms, INST IN: 2 M ohms

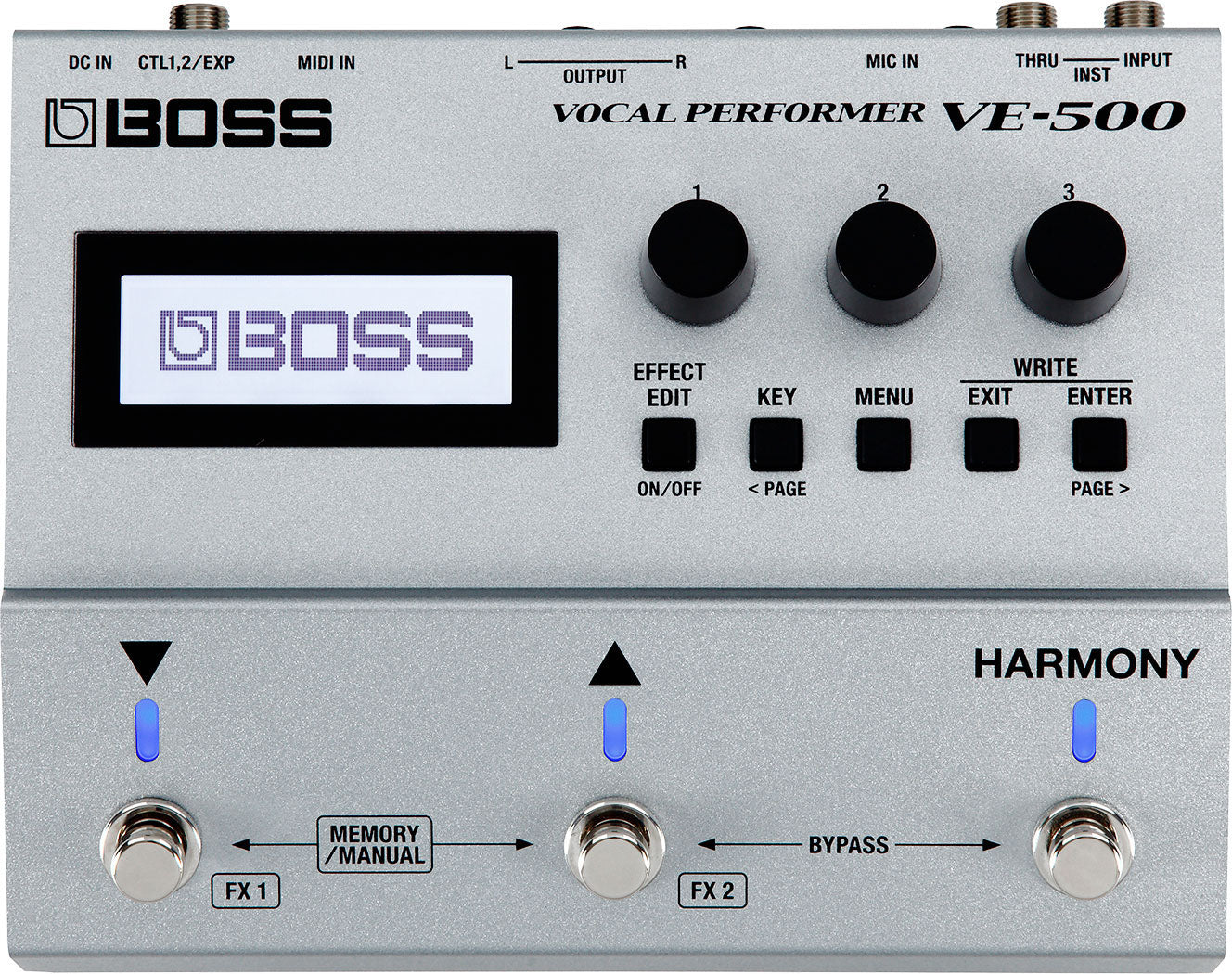

Nominal Output Level: XLR OUT L, R: -40 dBu, -10 dBu (Selectable), INST THRU: -10 dBu (Unbuffered)Output ImpedanceXLR OUT L, R: 600 ohmsDisplayGraphic LCD (132 x 32 dots, backlit LCD)ControlsDOWN switch, UP switch, HARMONY switch, EFFECT EDIT button, KEY button, MENU button, EXIT button, ENTER button, 1 knob, 2 knob, 3 knob, GND LIFT switch

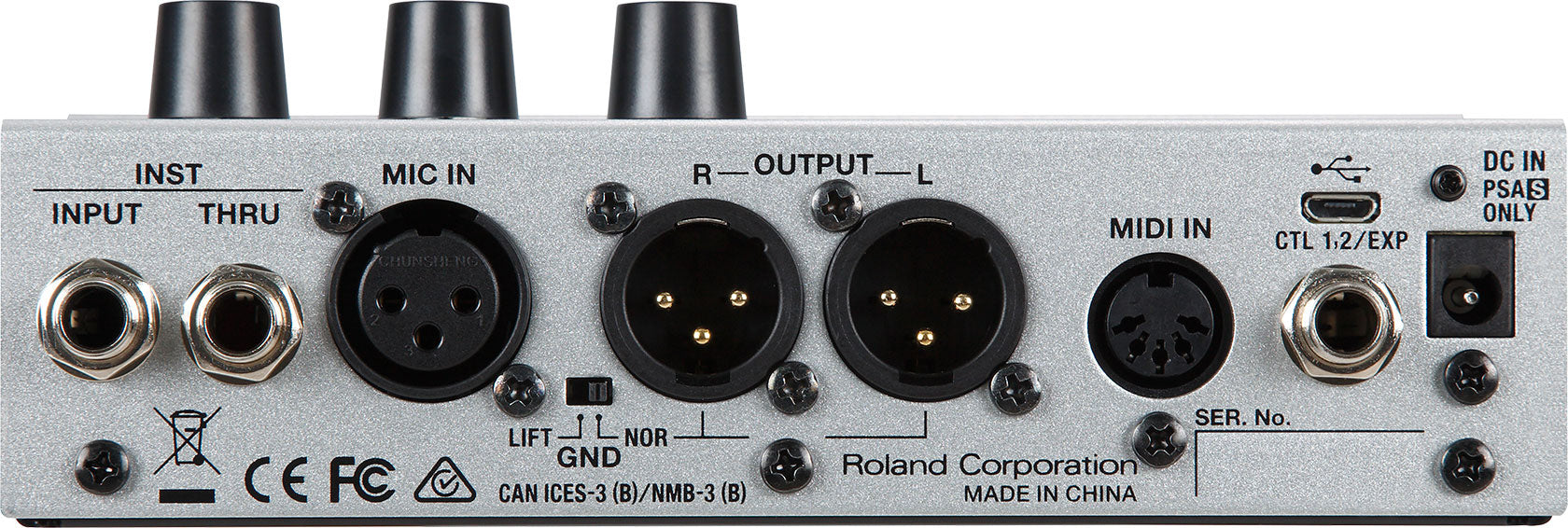

Connectors: MIC IN connector: XLR type, balanced, phantom power (DC 48 V, 10 mA Max), INST IN jack: 1/4-inch phone type, XLR OUT L, R connectors: XLR type, INST THRU jack: 1/4-inch phone type, CTL1,2 / EXP jack: 1/4-inch TRS phone type, MIDI IN connector, USB COMPUTER port: USB Micro-B type, DC IN jack
Power Supply: AC adaptor (PSA series)
Current Draw: 310 mA (with phantom power), 210 mA (without phantom power)
Accessories: AC adaptor: PSA series, Owner's manual, Leaflet "USING THE UNIT SAFELY"
Options (sold separately): Footswitch: FS-5U, FS-5L, Dual Footswitch: FS-6, FS-7, Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
SIZE AND WEIGHT: Width170 mm (6-3/4 inches) Depth 138 mm (5-7/16 inches) Height 62 mm (2-1/2 inches) Weight 860 g (1 lb 15 oz)
