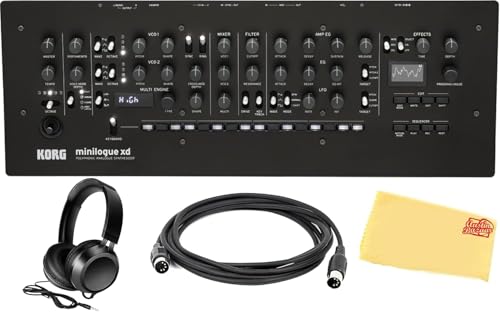

Korg Minilogue XD Module Polyphonic Analog Synthesizer w/ MIDI Cable

The desktop module is equipped with the same controllers as the keyboard version, making it a great choice not only as an additional sound module for your keyboard or DAW but also providing excellent performability, giving you an easy way to include an analog polyphonic synth in your setup. It's also equipped with a poly-chain function that lets you connect it with another minilogue xd or minilogue xd module so that the two units can operate as a polysynth with a total of up to eight voices in your studio or on stage.

PRODUCT SPECS

Keyboard: 37-keys (Slim-key, velocity sensitive)
Sound Generation: Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
Maximum Polyphony: 4 voices
Programs: 500 voices (more than 200 preload, 300 user programs)
Each program provides a program sort function that includes voice mode settings
Favorite function built in
Voice Mode: 4 (POLY, UNISON, CHORD, ARP / LATCH)
The VOICE MODE DEPTH setting allows different parameters to be varied for each mode
Sequencer: 16-step polyphonic sequencer
Motion sequence can be used on up to four parameters
Main Synthesis Parameters
VCO1: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
VCO2: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
MODULATION: SYNC, RING, CROSS MOD DEPTH
MULTI ENGINE: NOISE/VPM/USER, TYPE?SHAPE
MIXER: VCO1, VCO2, MULTI
VCF: CUTOFF, RESONANCE, DRIVE, KEYTRACK
AMP EG: ATTACK, DECAY, SUSTAIN, RELEASE
EG: ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)
LFO: WAVE (SAW, TRIANGLE, SQUARE), MODE?BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)
Main effect Parameters
EFFECT: TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH
MULTI ENGINE
Noise Generator: 4 types
VPM oscillator: 16 types
User oscillator: 16 slots
MOD EFFECTS
CHORUS: 8 types
ENSEMBLE: 3 types
PHASER: 8 types
FLANGER: 8 types
USER: 8 types
DELAY
DELAY: 12 types
USER: 8 slots
REVERB
REVERB: 10 types
USER: 8 slots
Controls: KEYBOARD switch
Display
Main: Real-time OLED oscilloscope provides visual feedback of parameter changes
MULTI ENGINE section: 7 segments x 6 digit LED display

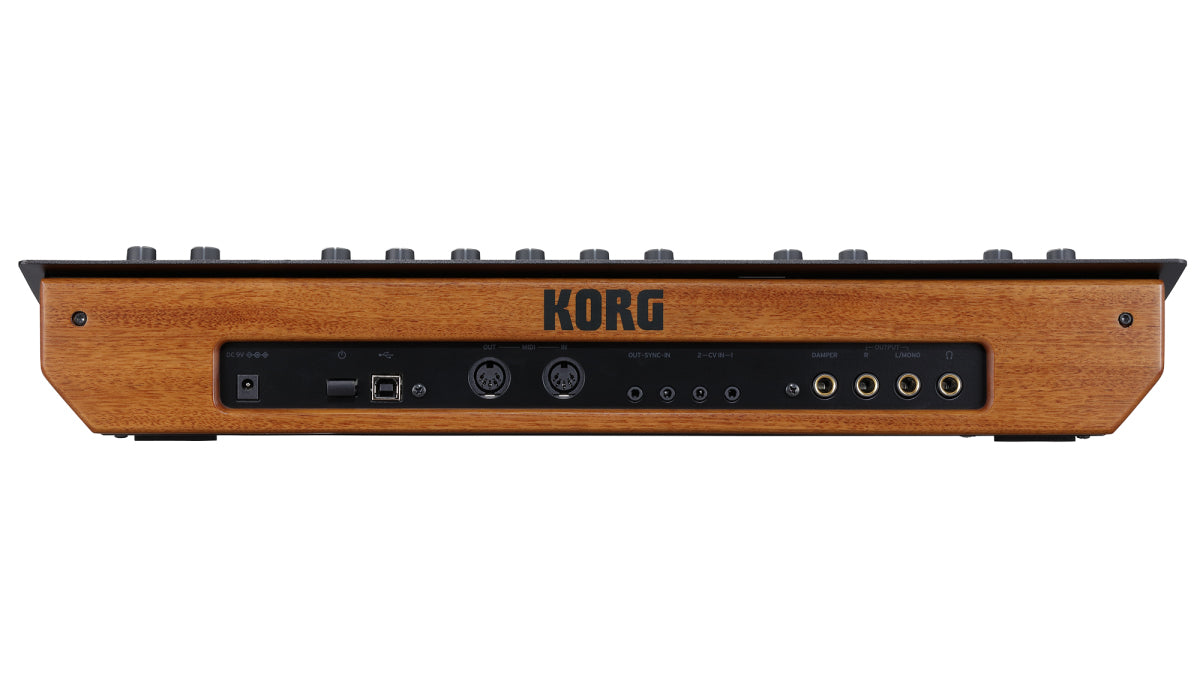

Input/Output connectors
Headphone jack (Stereo phone jack)
OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V - +5 V (Modulation mode), -3V - +5 V (CV/Gate mode)
SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)
SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V)
MIDI IN jack
MIDI OUT jack
USB B jack
DAMPER jack (half damper is not supported)
Power Supply: AC adapter (DC9 V)
Power Consumption: 8 W
Dimensions (W x D x H): 500 x 179 x 85 mm / 19.69" x 7.05" x 3.35"
Weight: 2.6 kg / 5.73 lbs.
Included Items: AC adapter
Accessories (sold separetely)
SC-MINILOGUE Soft shall case
SEQUENZ MP-TB1 MULTI-PURPOSE TALL BACKPACK
SQ-CABLE-6 Sync cable
DS-1H Damper pedal
PS-1 Pedal switch
PS-3 Pedal switch
Poly chain function: Two minilogue xd units can play up to eight voices polyphonically.
