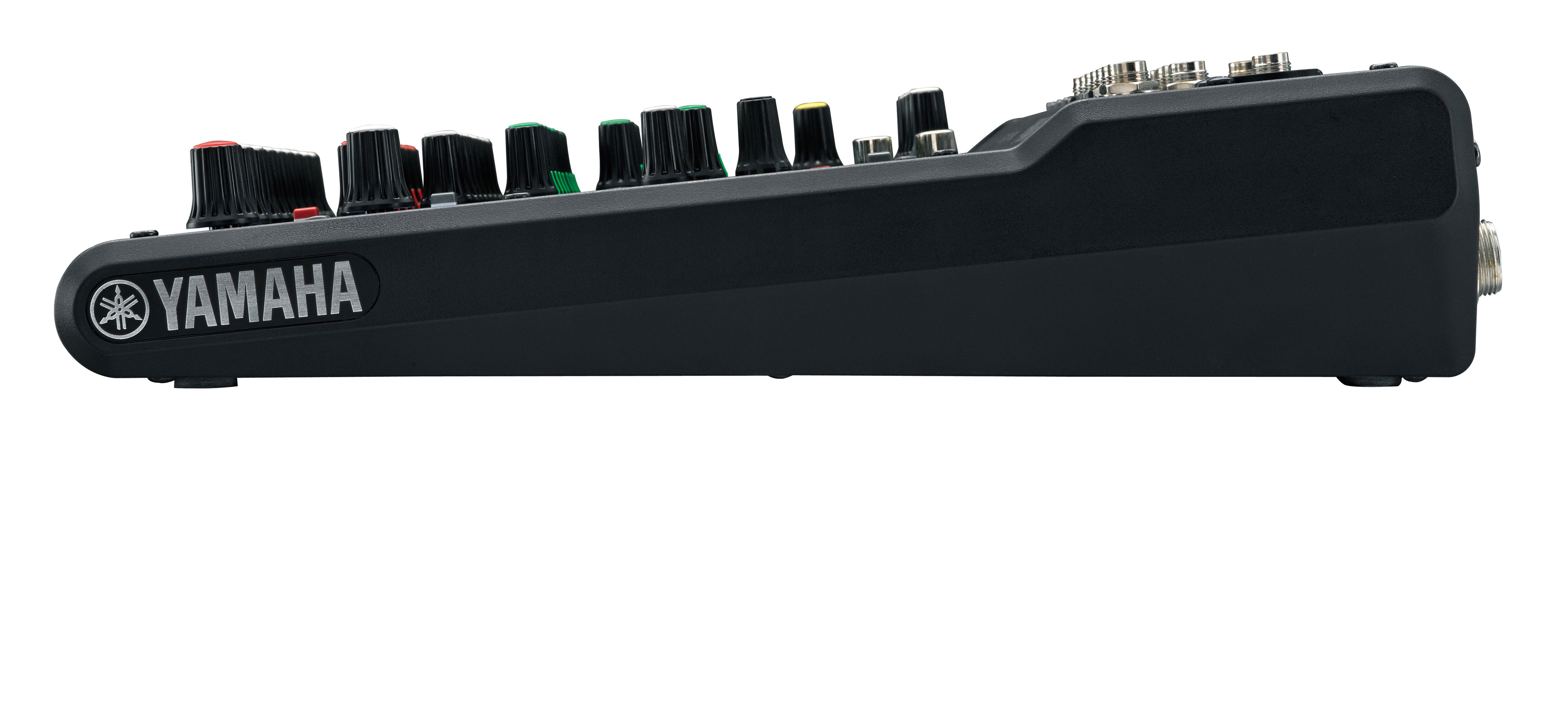

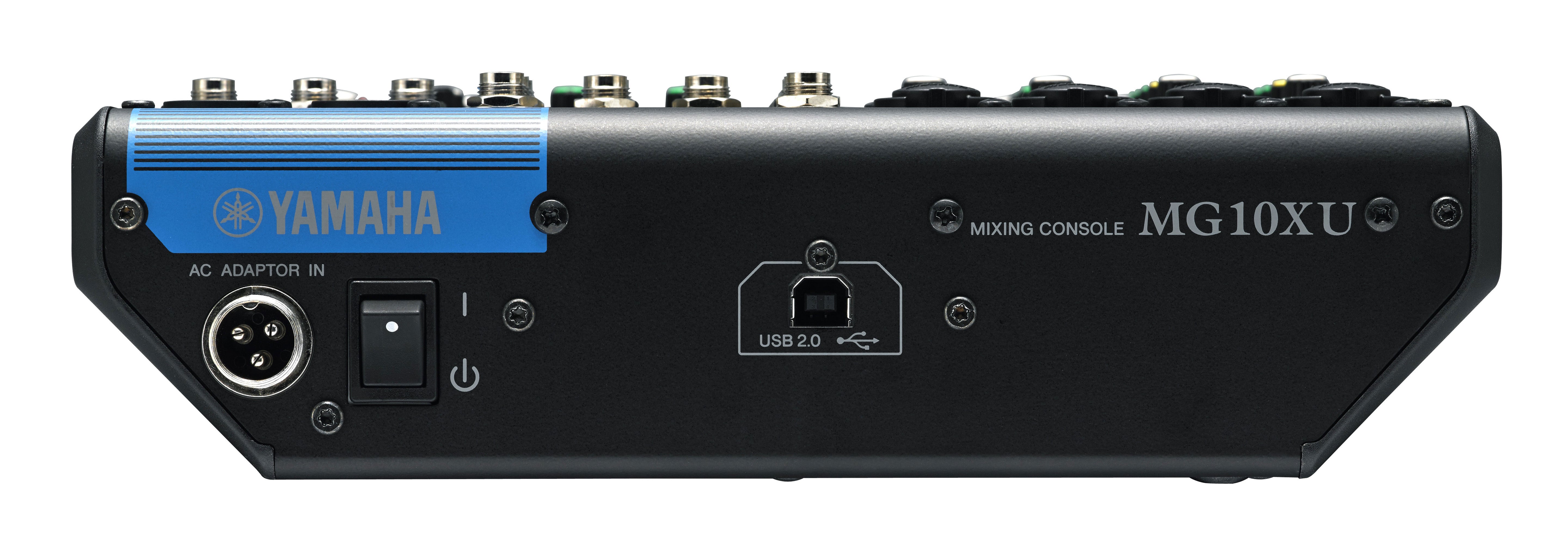

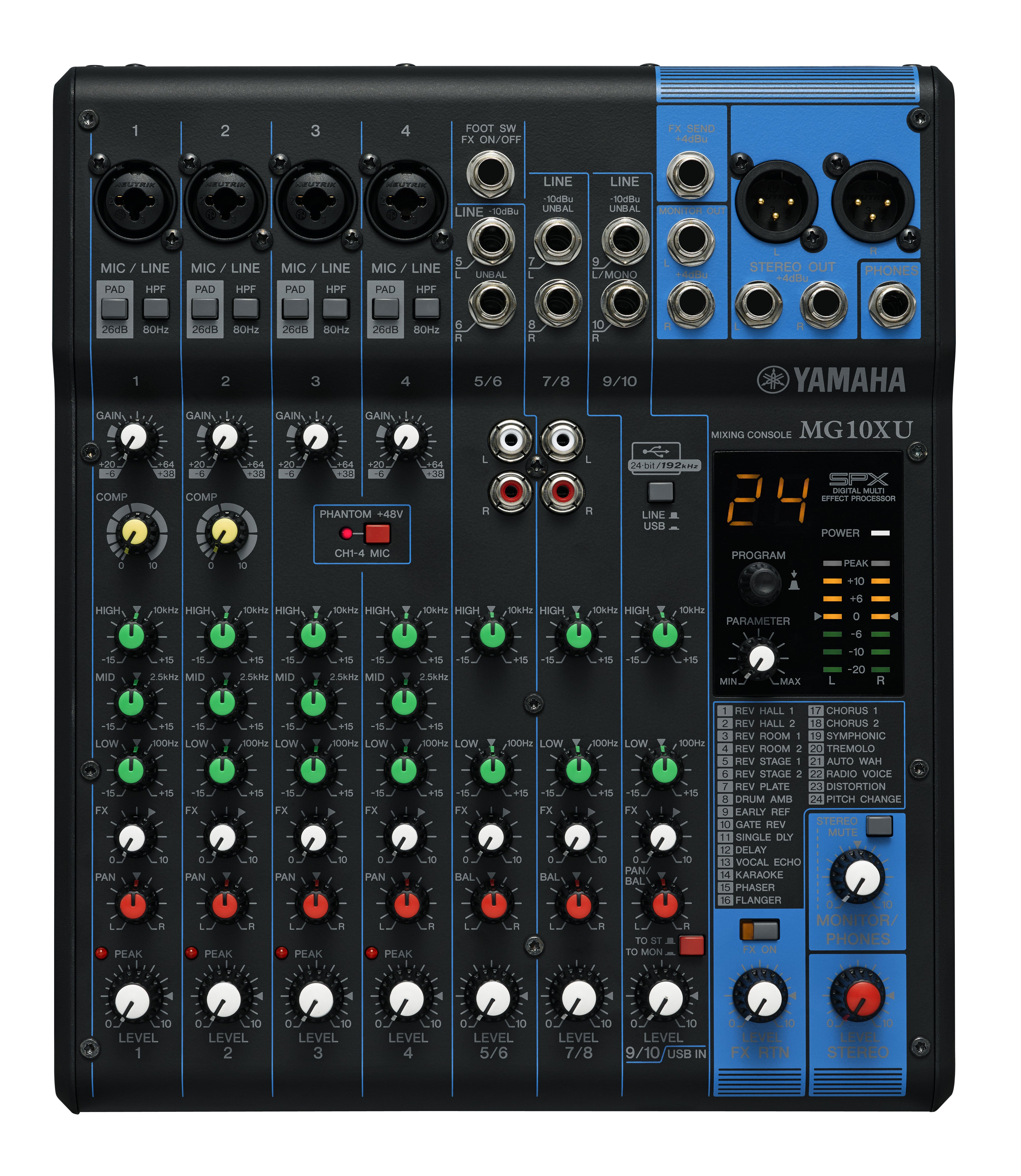

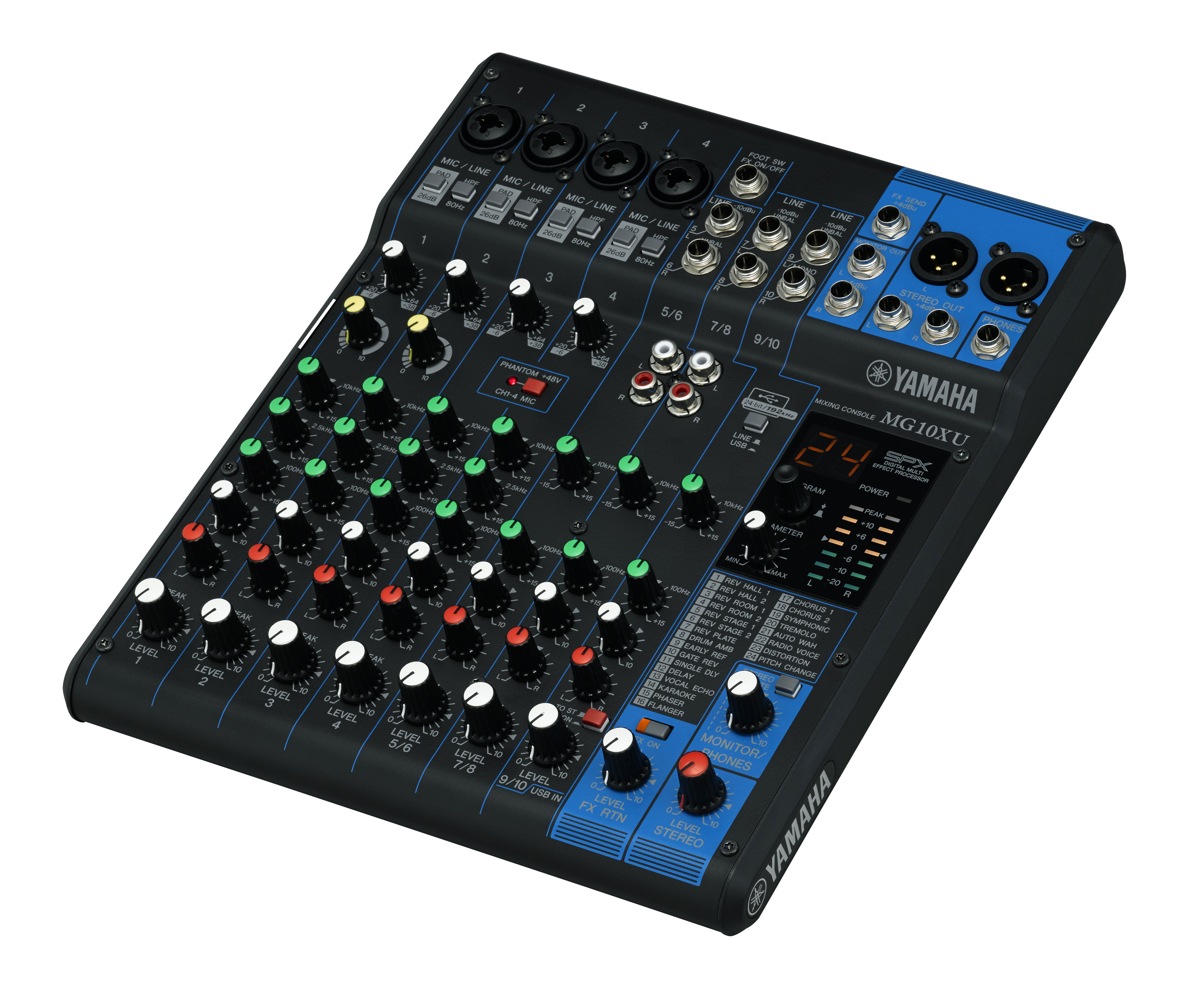

Yamaha MG10XU Mixer with Effects

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Specifications
10-Channel Mixing Console
Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
1 Stereo Bus
1 AUX (incl. FX)
"D-PRE" mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit / 192kHz 2in / 2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase AI DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Metal chassis
Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
Net Weight: 2.1 kg (4.63 lbs.)

Outline
Mixing capability: On-board processors: SPX algorithm: 24 programs
I/O: Phantom power: +48 V
: Digital I/O: USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels: Mono[MIC/LINE]: 4
: Stereo[LINE]: 3
Output Channels: STEREO OUT: 2
: MONITOR OUT: 1
: PHONES: 1
: AUX SEND: 1
Bus: Stereo: 1, AUX[FX]: 1
Input Channel Function: PAD: 26 dB (Mono)
: HPF: 80 Hz, 12 dB/oct (Mono)
: COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
: EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
: EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
: EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
: PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
: Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
General specifications
Total harmonic distortion: 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response: +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level: Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150?, GAIN knob: Max)
: Residual output noise: -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk: -83 dB
Power requirements: PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption: 22.9 W
Dimensions: W: 244 mm (9.6")
: H: 71 mm (2.8")
: D: 294 mm (11.6")
Net weight: 2.1 kg (4.63 lbs.)
Accessories: Included Accessory: AC Adaptor, Owner's Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5
Others: Operating Temperature: 0 to +40?C
