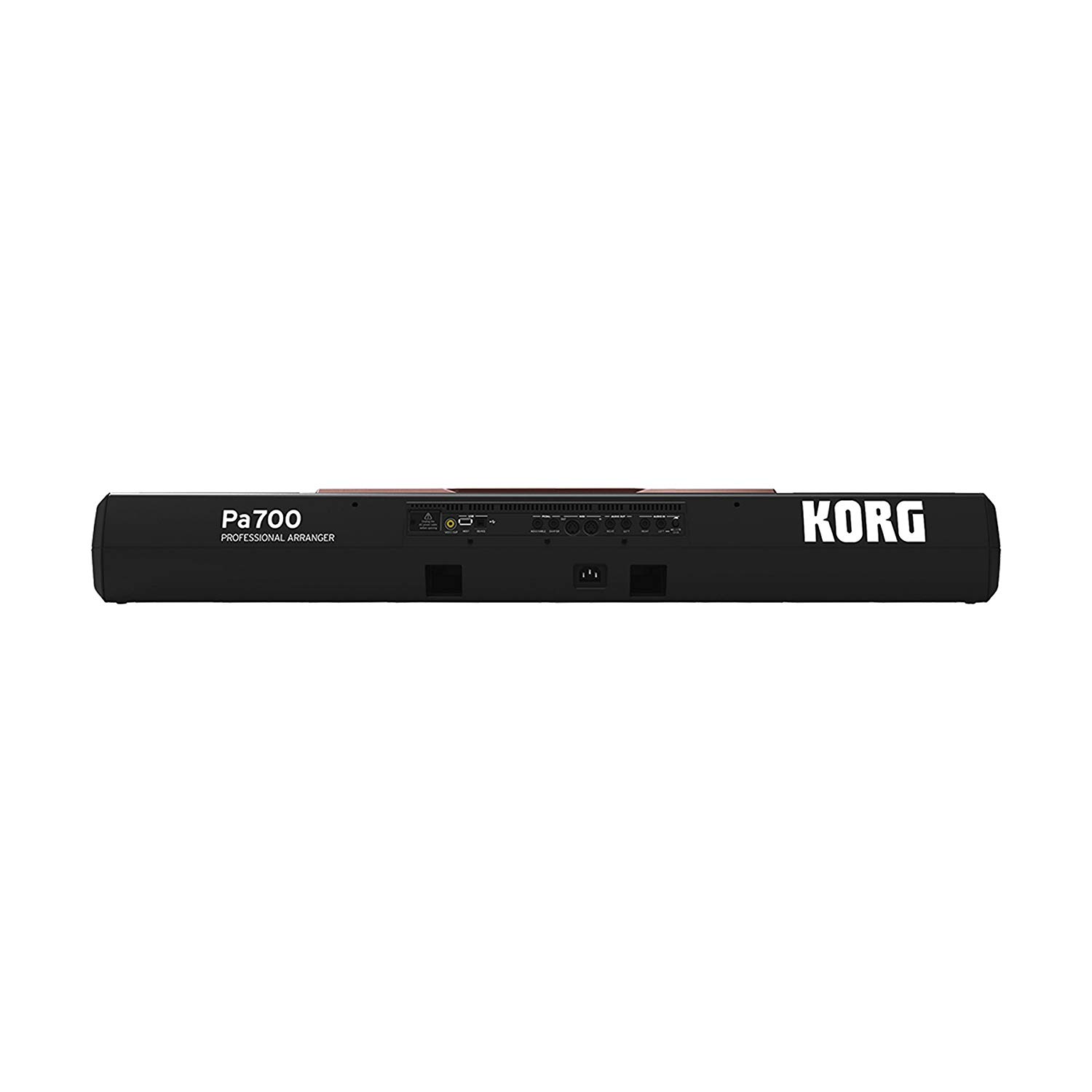

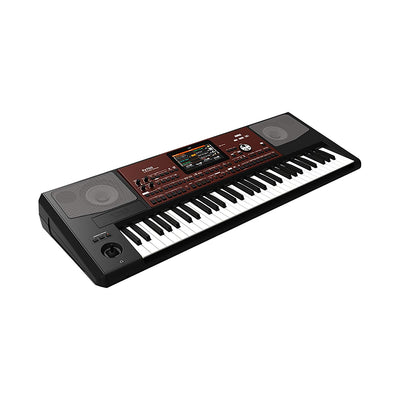

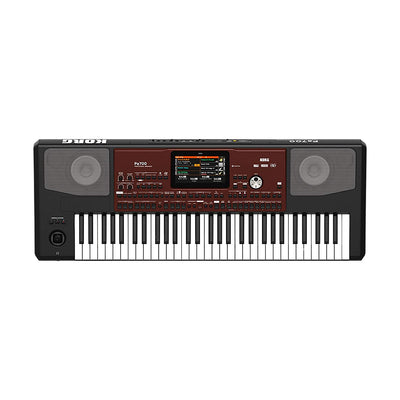

Korg Pa700 61-Key Professional Arranger Workstation

KORG is responsible for the most successful and respected arranger keyboards in the world. Used by countless professional musicians in every country around the world, KORG arrangers have thrilled audiences and delighted players everywhere with the magic combination of unbeatable sound quality and features. KORG Technology blends this great KORG history with powerful new capabilities and ideas from musicians around the world to deliver a new standard in arrangers. The result is a musical powerhouse that packages technological magic into a cool and user-friendly design: the KORG Pa700.

PRODUCT SPECS

Keyboard: 61 keys (C2 - C7) with velocity
System: Upgradable operating system, Multitasking, Load while play
Sound Generator: EDS-X (Enhanced Definition Synthesis - eXpanded), Filters with resonance, 3-band EQ on each Sound
Polyphony: 128 voices, 128 oscillators
Effects: Accompaniment/Song: 2 insert effects; 2 master effects (148 types), Keyboard Sounds: 1 insert effect; 2 master effects (148 types), Final mastering effects: Limiter, Master EQ, Voice Processor: 5 FX, 28 Factory, 64 User Presets, Guitar Processor: 3 FX, 45 Factory, 64 User Presets
Sounds / Drum Kits: Factory: More than 1,700 Factory Sounds including a multilayer Stereo Piano with damper and body resonance, GM/XG sound sets and 106 Drum Kit, User: 512 Sounds, 256 Drum Kits, Digital Drawbars: 9 footages, percussion, key on/off, leakage, rotary speaker effect
DNC (Defined Nuance Control) Technology, Natural Ambience Drums, Full Sounds/Drum Kits editing
Sampling: 128 MB compressed (equivalent to 256 MB linear data); Loads KORG, WAV, AIFF and SoundFont formats, Saves KORG, WAV and AIFF formats, Full Edit, Time Slice
Styles: Factory: More than 370 Factory Styles, freely reconfigurable sets, User: 1,152 locations, including User and Direct banks, Eight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style; Style Settings (Sounds and Arranger parameters) on each Style, Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table), Style/Pad Record with Step Record, Track and Event Edit, Style Creator Bot (MIDI Song to Style Converter), Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to Keyboard Set Mode
Chord Sequencer: Chord Sequence recorder and player in Style Play mode, Chord Sequences can be saved to Style and SongBook Entries, Edit functions: Delete, Copy from Style/SongBook, Import/Export from/to SMF
Keyboard Set Library: Memorize Keyboard Sound settings, Factory: More than 290 Factory Keyboard Sets, freely reconfigurable, User: 864 locations, including User and Direct banks, 'My Setting' special Keyboard Set
KAOSS FX: Automatic MIDI FX generator, More than 65 Factory Presets
Song Play: Supported formats: MID, KAR, MP3+Lyrics, MP3+G, Select, Start/Stop, Home, Rewind and Fast Forward controls, Lyrics, Score, and Chord data can be displayed on screen, or on an external video monitor, Markers with Add, Delete, Edit and Loop functions, Jukebox function
MP3 Player / Recorder: MP3 Player and Recorder, Transpose (+6/-5 semitones), Tempo change (?30%), Vocal Remover, Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar, Effects, and KAOSS Effects
Sequencer: Quick Record (Backing Sequence), Multitrack and Step Record functions, Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format
SongBook: Fully programmable music database, based on Styles, MIDI Songs (MID and KAR files), MP3 Songs, with automatic selection of Style Play and Song Play modes
User definable Set Lists, with Entries selectable from the control panel, Filtering and sorting options
Compatibility: Pa-Series models: Styles, Performances, Programs/Sounds, Songs, SongBook Entries, Pads 'i-Series' models: Styles
Pads: Four Assignable Pads + Stop buttons, Pad Record function
General Controls: Master Volume, Fade In/Out, Keyboard-Acc/Song Balance, Ensemble, Octave Transpose, Master Transpose, Joystick, 2 Assignable Knobs, 3 Assignable Switches, Tempo +/-, Tempo, Lock; Metronome On/Off, Dial, Search, Shift Split, Record
Scale Controls: Virtual Quarter Tone SubScale Keypad, 4 x Scale Presets
Control Inputs: Damper pedal (supports half-pedaling with the optional DS-1H pedal), Assignable pedal/switch
Audio Inputs: Line (Left/Right): 1/4" jacks, +20dBm, 12k Ohm
Mic/Guitar (Left): 1/4" jack, with Gain control (0 -- +40dB)
12k ohm (Mic) / 500k ohm (Guitar)
Audio Outputs: Left/Right, 1/4" jack, +21dBm, 0.003% THD+N@+18dBm, Headphone output (1/4" jack), 16-200 Ohms (50 Ohms suggested)
Speaker System: Amplification: 2 x 25W, Speakers: 2 x Dual Cone Speakers in Bass Reflex Box
MIDI: IN, OUT standard MIDI connectors, USB to MIDI using the USB ports, HOST: memory and controllers, DEVICE: personal computers, Eight user definable MIDI Setups
USB: Type A (Host), Type B (Device), 2.0 Hgh-Speed connections (480 Mbit/s). Low-Speed (1.5 Mbit/s) and Full-Speed (12 Mbit/s) devices can only be connected through a High-Speed USB hub.
Storage: Internal memory: 960 MB, USB external drives (drive not included), microSD card (not included); rear panel slot with plastic cover
Display: 7" Wide capacitive color TouchView TFT display
Video Out: RCA connector
Clock: Internal System Clock
Power Consumption: 100-240 Volts, 50/60 Hz, 25 Watt normal / < 0.3 Watt in standby
Dimensions (W x D x H): 1030 x 378.3 x 132 mm/40.55" x 14.89" x 5.2" (without music stand; height with music rest: 355.8 mm / 14")
Weight: 9.9 kg/21.82 lbs
