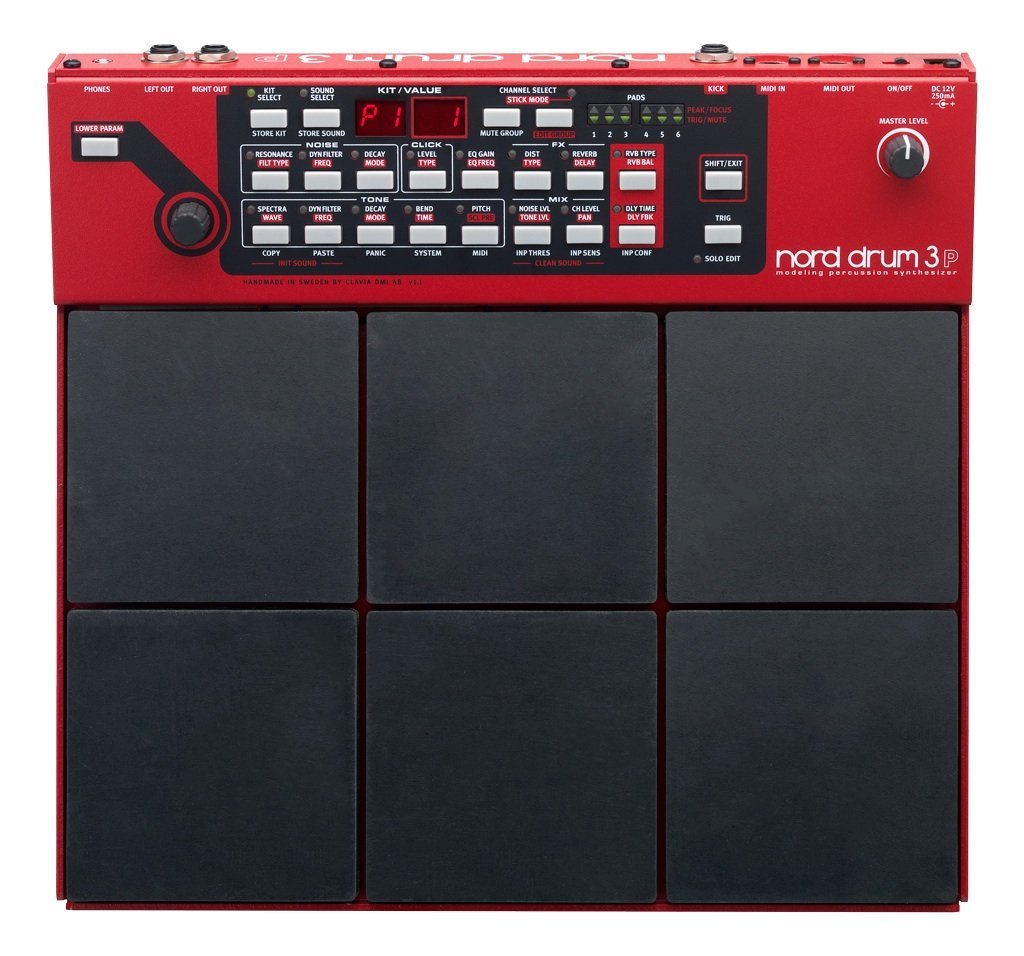

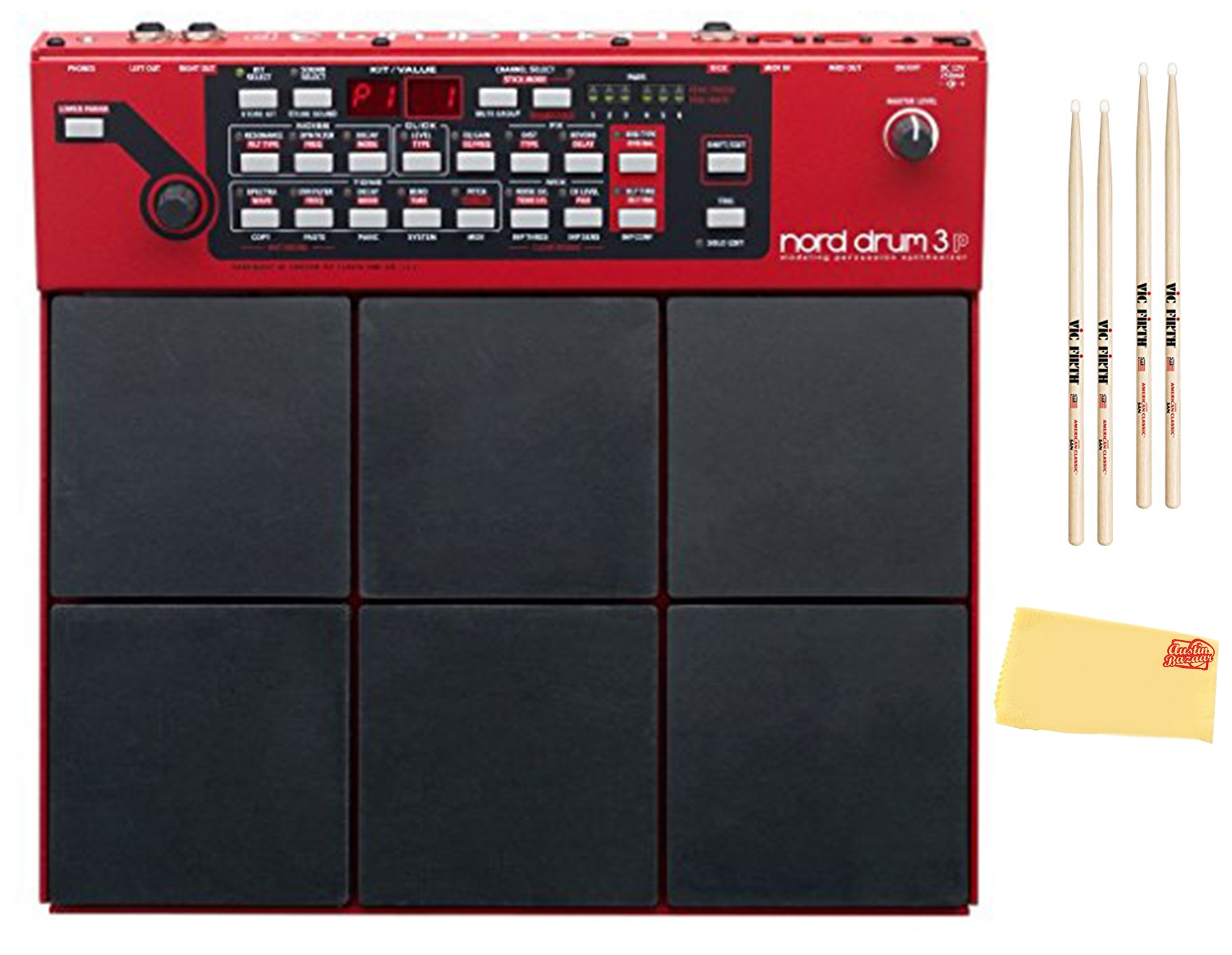

Nord Drum 3P Modeling Percussion Synthesizer

The super compact new Nord Drum 3P combines stunning playability with unlimited sound design possibilities! New features include integrated multi-pad, Reverb and Delay effects, a simplified sound selection mode and new Sound Banks for quickly creating custom kits on the fly.

PRODUCT SPECS

GLOBAL
4 Character LED-display
4 Banks x 50 Programs for Drum Kits
9 Drum banks for single drum sounds - Bass Drums, Snare Drums, Toms, Hi-Hats, Cymbals, Percussion, Bells, Tuned Percussion, Effects
8 User Banks x 50 sounds for single drum sounds
Free OS updates

SOUND GENERATION
6-channel Percussion Modeling Syntesizer
Tone section - Resonance modeling, Subtractive, Ring Modulation and FM-synthesis
Noise section - Low Pass 12dB/24dB, High Pass 12db/24dB, High Pass High Cut and Band Pass 6dB/12dB filter. Adjustable resonance and filter envelope response
Click section - 12 click types, Noise Waveforms, Short Pulses, High Pass Filtered Pulses and Chirps. Adjustable level.

EFFECTS
Global Stereo Reverb with 5 reverb modes (Tiled Room, Room, Plate, Stage and Hall) and Color highpass/low pass. Reverb amount can be adjusted per channel.
Global Delay with Rate (Milliseconds), Feedback and Tap Tempo mode (BPM)
Drive, Sample Rate Reduction and Ring Modulation Effects per channel
EQ with Gain and Frequency controls per channel

PADS AND TRIGGER INPUT
6 integrated rubber pads with adjustable Input Threshold/Sensitivity
External Trigger input with adjustable Input Threshold/Sensitivity for Kick drum pad or similar
Adjustable Dynamic Response Curves
Channel Peak/Activity indicator

MIDI
MIDI Note ON/OFF
MIDI Program Change
MIDI CC parameter control

CONNECTIONS
2 Audio Outputs 1/4", 6,35 mm (unbalanced)
Stereo Headphones Output - 1/8", 3,5 mm
MIDI in & out - 5 pin DIN connectors
1 generic trigger input - 1/4", 6,35 mm
DC input - 12V, 500mA

DIMENSIONS
Nord Drum 3P: 29,9 x 4,85 x 28,1 cm (11,78" x 1.9" x 11,2")

WEIGHT
Nord Drum 3P: 1,85 kg (4,1 lbs)

INCLUDED ACCESSORIES
User Manual
Universal Module Mount
Universal Power Adapter
