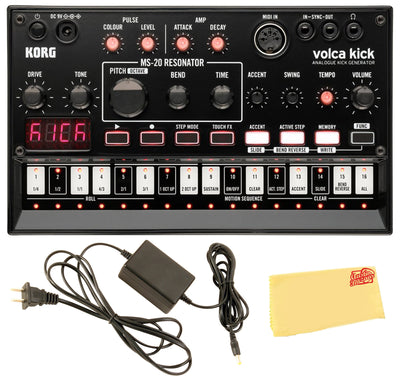

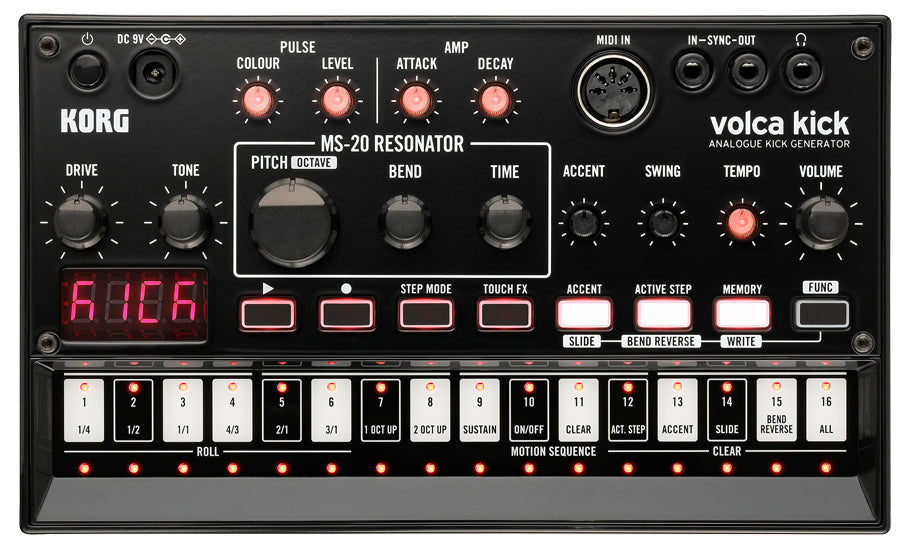

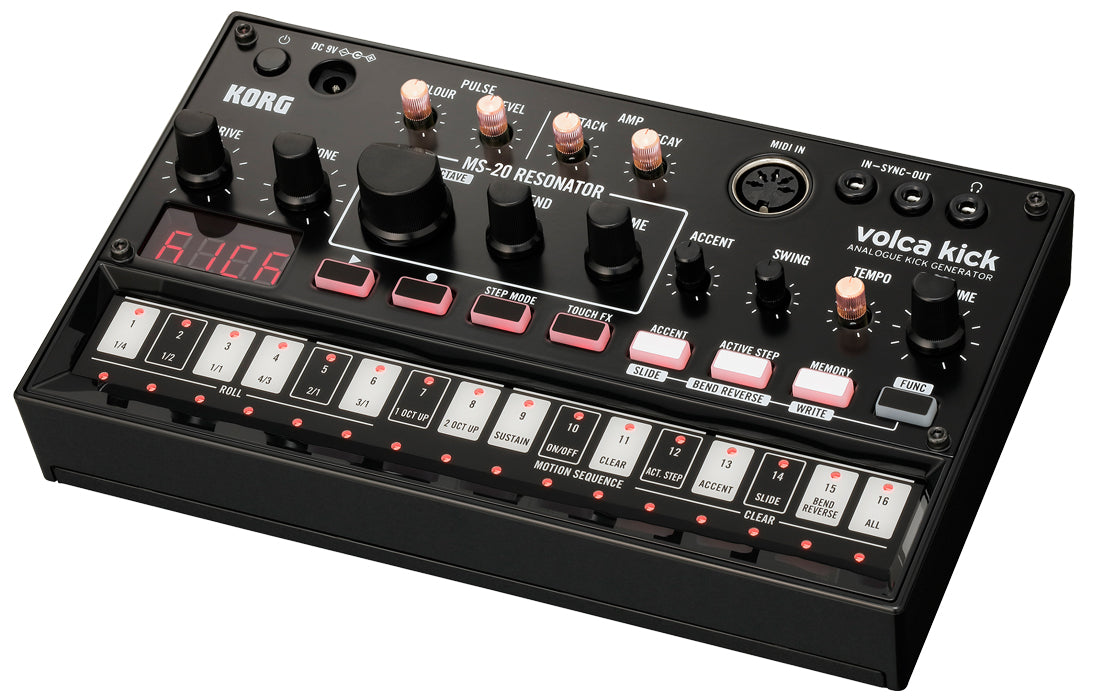

Korg Volca Kick Analogue Kick Generator w/ Power Supply

The volca series has consistently brought renewed attention to classic groove machines and historical synthesis. It now has a new focus. This time, it's the most important sound in dance music: the kick.

The volca kick is an analog kick generator that's made for sound design. An analog circuit based on the powerful resonant sound of the original MS-20 filter, it lets you create a wide range of kick sounds only possible through analog circuitry, ranging from solid kick drums to crisp kick basses. The 16-step sequencer, a distinctive feature of the volca, now has a new Touch FX feature that lets you control an effect instantly, giving you even more live performance potential. Experience the stunning power of an analog kick that cannot be obtained from a plug-in or a sample.

The volca kick generates powerfully present kick sounds using a completely analog circuit. To create those sounds, it uses not a typical sine wave, but the sound of an oscillating filter from the original MS-20. The powerful Rev.1 filter of the MS-20 self-oscillates when resonance is increased to the maximum, and this is used to produce powerful kick sounds with complex overtones.

Simple and effective parameters are provided, allowing you to freely design a wide range of kick sounds to your taste. Start the sound design process by using MS-20 RESONATOR (PITCH/BEND/TIME) to control the sense of pitch that generates the "body resonance" of the kick sound. Then use PULSE COLOUR/LEVEL to adjust the clip components to control the sense of attack, and AMP ATTACK/DECAY to intuitively control the decay of the sound. From tight kicks to fat, slow-decaying kicks, and pitched kick bass, it's possible to create kick sounds that are appropriate for every type of dance music.

Keyboard: Multi touch keyboard / Step key

Kick Generator
Type: Analog synthesis
Maximum Polyphony: 1 voice
Structure: VCF (no input MS-20 Rev1 filter as resonator), Pulse Generator, VCA, analogue DRIVE, analogue TONE
MS-20 Resonator: Pitch/Octave, Bend, Time
Pulse: Colour, Level
Amp: Attack, Decay
Tone: Low Pass Filter, 12 db/oct

Sequencer
Number of Parts: 1
Number of Steps: 16
Number of Recording Patterns: 16 (each with its own sound program)

Controls: Pattern Chain, Motion Sequence, Touch FX, Active Step, Accent (On/Off, Depth), Slide, Bend Reverse, Roll (1/4, 1/2, 1/1, 4/3, 2/1, 3/1), Octave (1 Oct Up, 2 Oct Up), Sustain, Swing

Connectors
Audio Output: Headphones (3.5mm stereo mini jack)
Sync: Sync In (3.5mm monaural mini jack, Maximum input level: 20V), Sync Out (3.5mm monaural mini jack, Output level: 5V)
MIDI: In

Power
Power Supply: AA alkaline battery x 6 or AA nickel-metal hydride battery x 6 Or AC adapter (DC 9V) (optional)
Battery Life: Approximately 10 hours (using alkaline batteries)

Dimensions (W x D x H): 193 x 115 x 46 mm / 7.60" x 4.53" x 1.81"
Weight: 377 g / 13.29 oz. (Excluding batteries)

Others
Included Items: AA alkaline battery x 6 (for verifying operation), Sync Cable
Optional Accessories: AC adapter (DC 9V)
