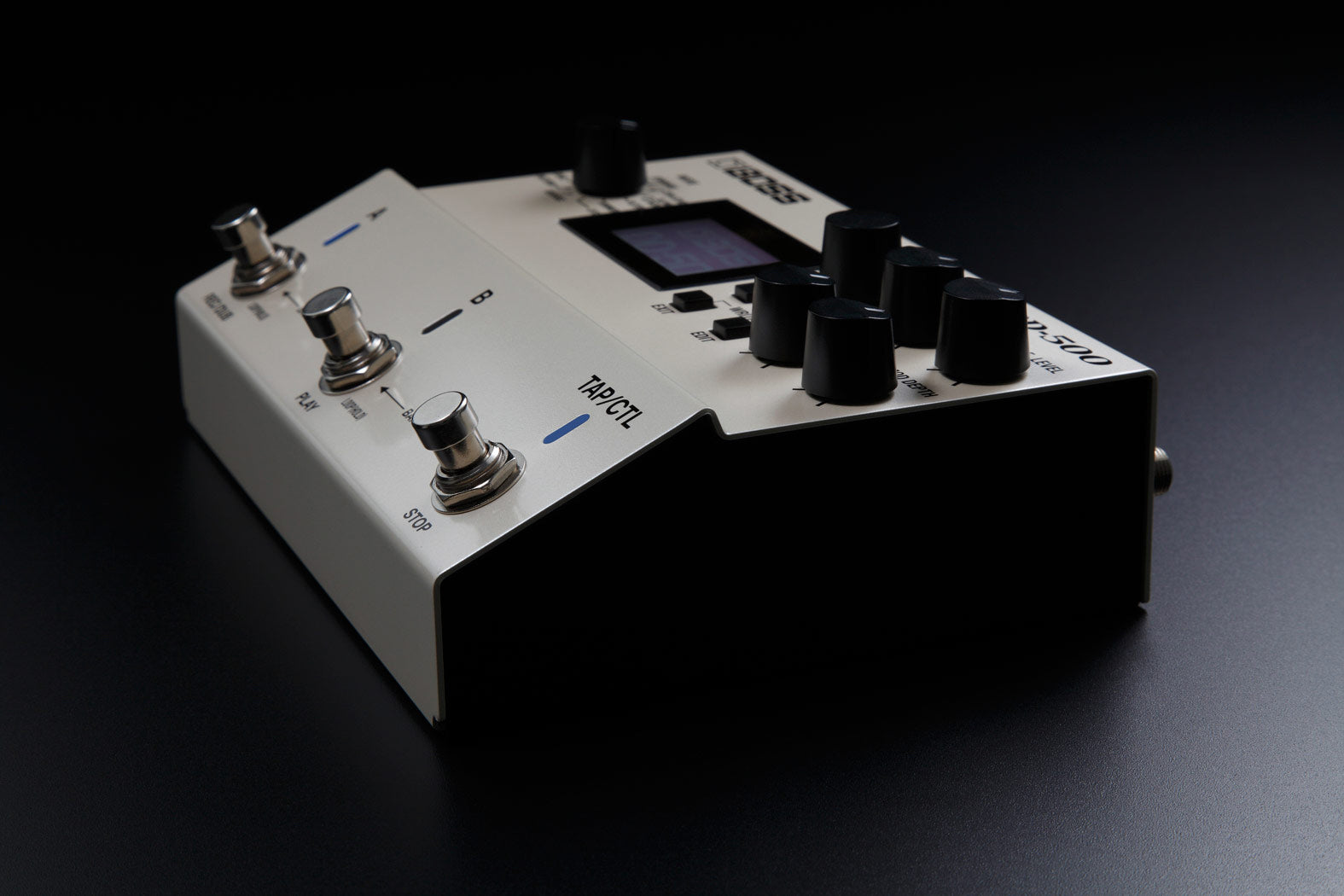

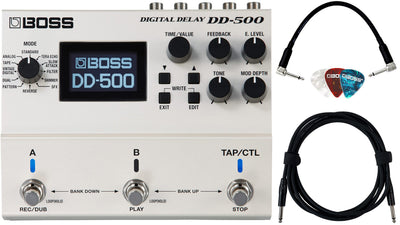

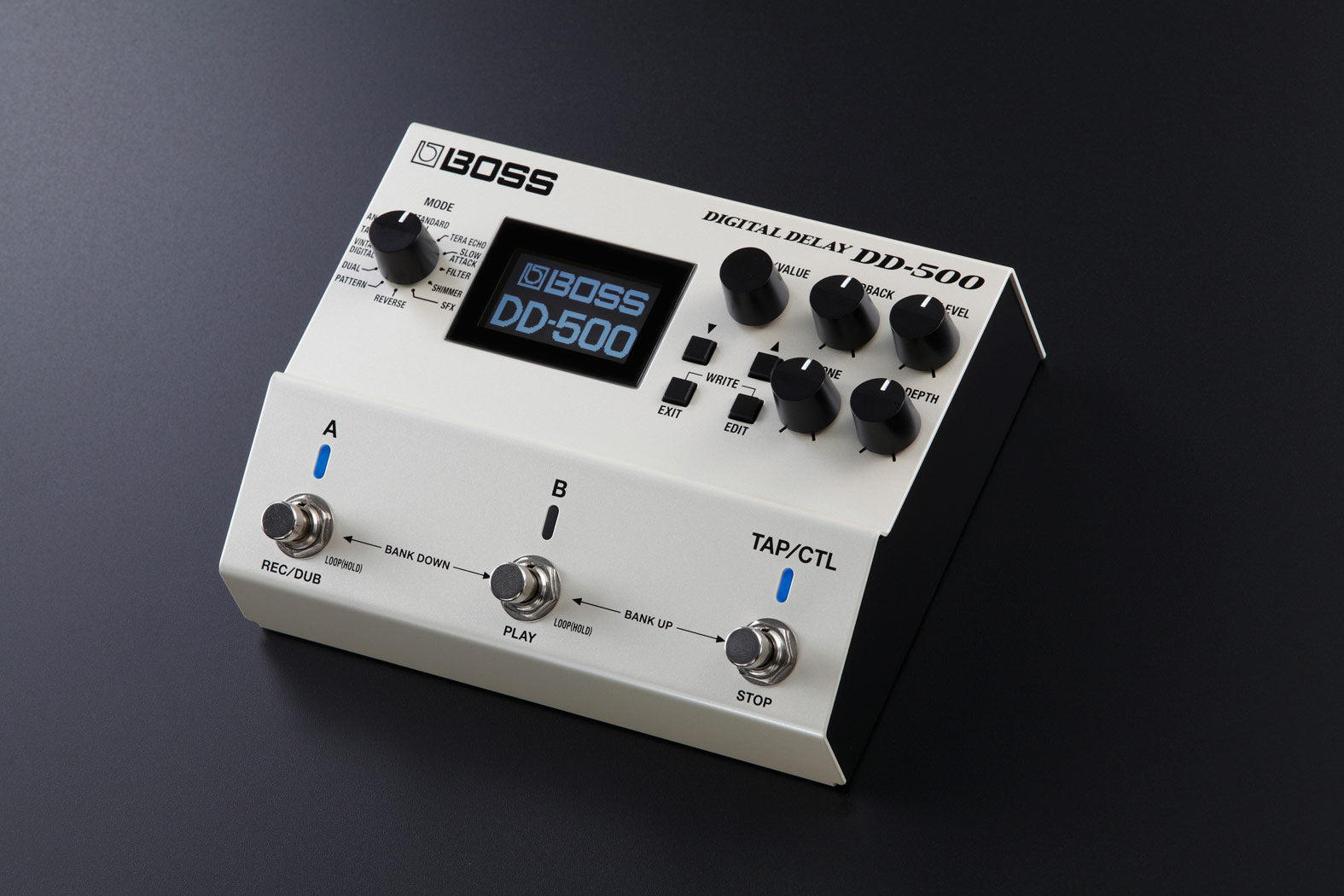

Boss DD-500 Digital Delay w/ Instrument Cable

MASTERFUL SOUND, EXTRAORDINARY CREATIVE POWER
Filled with newly developed BOSS technology, the DD-500 is the most powerful and versatile stompbox delay ever created. This incredible sound-creation toolbox offers 12 distinctive delay modes with exceptional audio quality, plus deep editing controls, a graphic display, patch memories, MIDI, and much more. From basic echo to dead-on emulations of classic delays to incredibly lush spatial textures that take your breath away, the DD-500 will launch your music places you never thought possible.Twelve Versatile Delay

With the DD-500's 12 delay modes, you can create any delay sound you can imagine, and then some. Everything you need is here, from warm, gritty vintage delays and tape echo to complex modern delay lines that employ pitch shifting, filtering, and other unique processing. With the hands-on knobs, it's easy to shape essential parameters and create great sounds immediately. Each delay type also includes a semi-parametric four-band EQ, modulation, ducking, and many other parameters, allowing you to dive deep and refine tones with maximum precision.

In the DD-500, every delay mode has been carefully crafted for a unique sonic personality and highly musical tones at every setting, realized by 32-bit/96 kHz processing throughout. And while the DD-500's delay effects are high-end digital, your straight guitar tone remains 100-percent analog at all times, with your choice of buffered or true-bypass operation. In addition to strengthening the analog dry signal, buffered bypass has the added benefit of enabling carryover, so delay trails are not cut off unnaturally when the effect is switched.

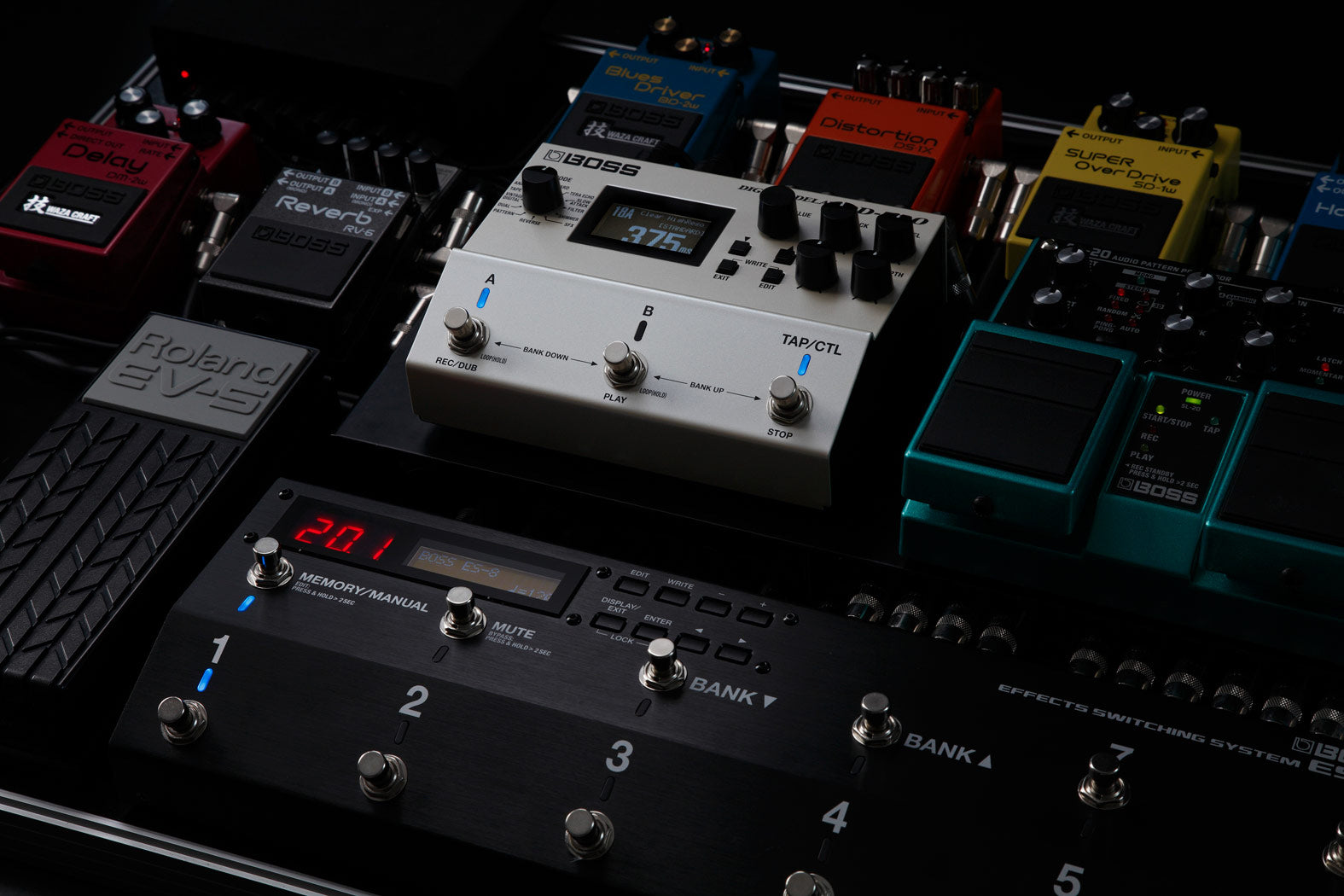

In the world of sophisticated delay stomps, the DD-500 stands alone in practical usability. The large, integrated LCD fully supports the pedal's immense capabilities, giving you clear visibility of delay time, patch ID, and more on one screen, plus sane navigation for detailed parameter tweaks, naming, and system management. And via USB, it's simple to connect to your computer for patch backup and MIDI I/O opens up many additional control options with advanced setups such as a pedal board incorporating BOSS Effect Switching System ES-8.

With its freely assignable controls, the DD-500 delivers unmatched creative expression and performance flexibility. By default, the A, B, and TAP/CTL switches offer intuitive control for two patches, bypass, bank selection, tap tempo, and more. However, they can be customized to operate in alternate ways, such as providing top-level access to three different delay patches, or allowing you to use two patches at once for layered delay sounds. Instead of tap tempo, you're able to assign the TAP/CTL switch to various real-time functions like Warp or Twist for a wide range of expressive effects. Even more parameters can be manipulated via an optional expression pedal or external switches, and MIDI I/O opens up many additional control options with advanced setups.

DD-500 Delay Modes
Standard -- Clear digital delay.
Analog -- Emulates classic analog "BBD" delays like the BOSS DM series.
Tape -- Emulates the warm sound of tape-based delay units, including the Maestro Echoplex and legendary Roland RE-201 Space Echo.
Vintage Digital -- Emulations of early digital delays from the 1980s, including Roland's famous SDE-2000 and SDE-3000 rack units and the BOSS DD-2, the original stompbox digital delay.
Dual -- Two different delay lines that can be connected in series or parallel.
Pattern -- Sixteen different delay lines that can be set independently for all types of unique rhythmic effects.
Reverse -- Backwards delay for cool psychedelic effects and other unique tones.
SFX -- "Special effects" delay with a highly unique sound character.
Shimmer -- Pitch-shifted delays for lush, heavenly textures.
Filter -- Delay with a sweeping filter.
Slow Attack -- Ethereal delays that fade in with playing dynamics.
Tera Echo -- Spacious, animated ambience effect derived from the innovative BOSS TE-2 pedal.

The following functions can be assigned to the DD-500's onboard TAP/CTL switch and/or optional external footswitches. These assignments are stored as part of a patch.
Tap -- Set the delay in time with a song's tempo.
Hold -- The delay's feedback is held continuously while the switch is pressed.
Warp -- Increases the delay's feedback and level simultaneously for powerful expressive effects.
Twist -- Adjusts multiple delay parameters with a single press, creating wild sounds similar to twisting the panel knobs in real time.
Moment -- Outputs the delay sound only when you hold down the switch.
Roll 1/2 -- Cuts the delay time to 1/2 of the current setting when you hold down the switch.
Roll 1/4 -- Cuts the delay time to 1/4 of the current setting when you hold down the switch.
Roll 1/8 -- Cuts the delay time to 1/8 of the current setting when you hold down the switch.
Fade In -- Fades in the delay sound.
Fade Out -- Fades out the delay sound.
Assign 1-8 -- Allows you to assign and control up to eight different delay parameters at once.

Studio-level stereo sound with 32-bit/96 kHz processing throughout

12 versatile delay modes from vintage to modern deliver unlimited creative possibilities

Unrivaled real-time expression with customizable control settings for onboard and external switches

Graphic LCD for easy, intuitive operation while performing and editing

Onboard patch memories and hands-on controls

Equipped with a built-in Phrase Looper, MIDI, USB, and more

Selectable buffered or true-bypass operation

Runs on four AA-size batteries or PSA-series AC adapter

Dedicated editor software available

Firmware update version 2.0 to be available in September 2017 for more versatility, flexibility, and creativity

Sampling Frequency: 96 kHzAD/DA
Conversion: 32 bits
Processing: 32-bit floating point
Delay Modes: 12 modes, STANDARD, ANALOG, TAPE, VINTAGE DIGITAL, DUAL PATTERN, REVERSE, TERA ECHO, SLOW ATTACK, FILTER, SHIMMER, SFX
Maximum delay time: 10 sec.(depends on delay mode)
Phrase loop: 60 sec. (96 kHz/MONO, 48 kHz/STEREO), 120 sec. (48 kHz/MONO), Delay can be applied.
Patches: 198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])
Pedals: Foot switch x 3 [A][B][TAP/CTL]

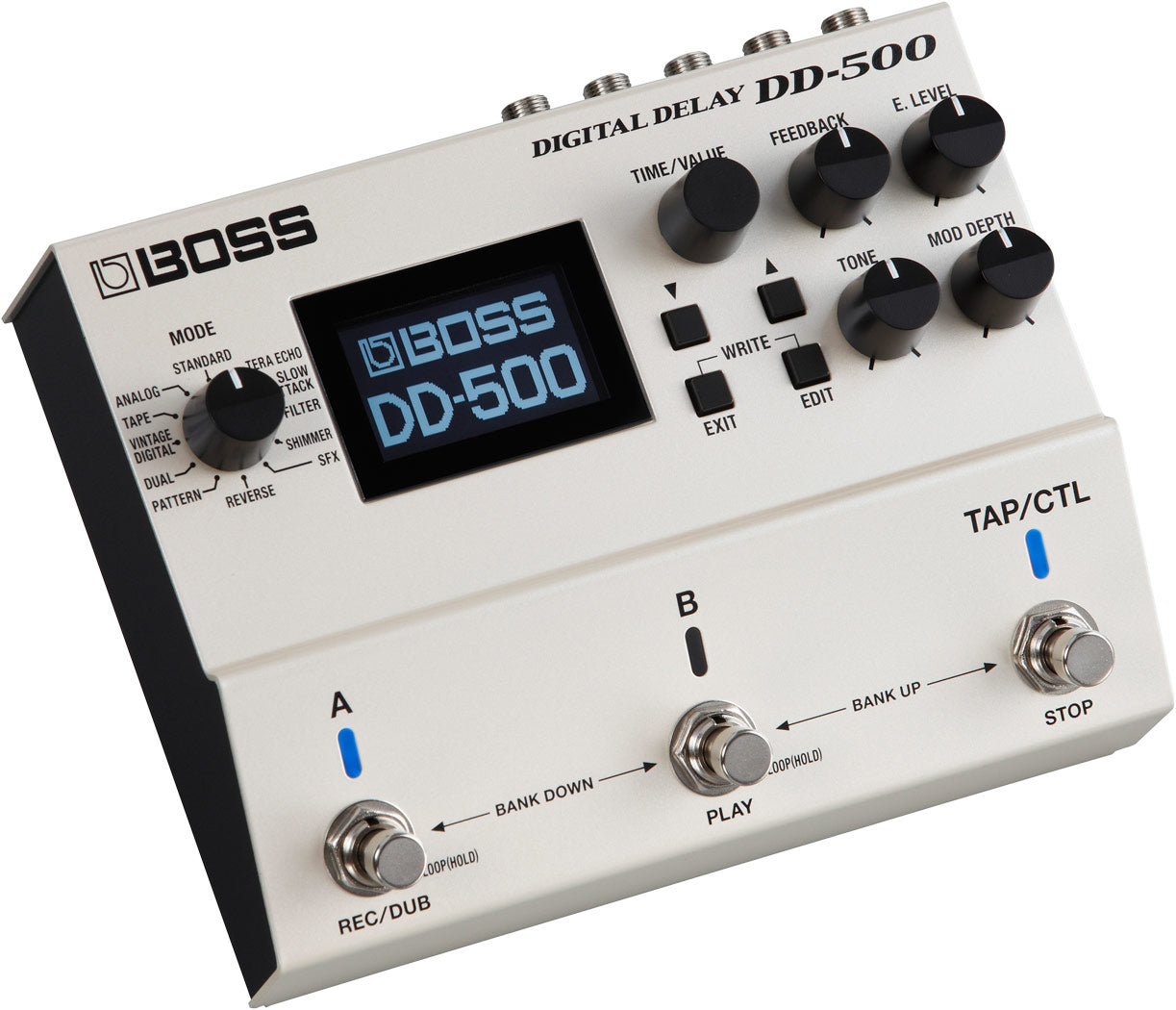

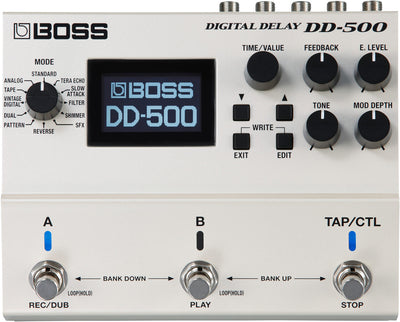

Knobs: MODE TIME/VALUE FEEDBACK, E.LEVEL, TONE, MOD DEPTH
DisplayGraphic: LCD (128 x 64 dots, backlit LCD) x 1
Nominal Input Level: INPUT A/MONO, B: -10 dBu
Maximum Input Level: INPUT A/MONO, B: +8 dBu
Input Impedance: INPUT A/MONO, B: 1 M ohm
Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, B: +8 dBu
Output Impedance: OUTPUT A/MONO, B: 2 k ohms
Recommended Load Impedance: OUTPUT A/MONO, B: 20 k ohms or greater
Bypass: Buffered bypass or True bypass (with relays)

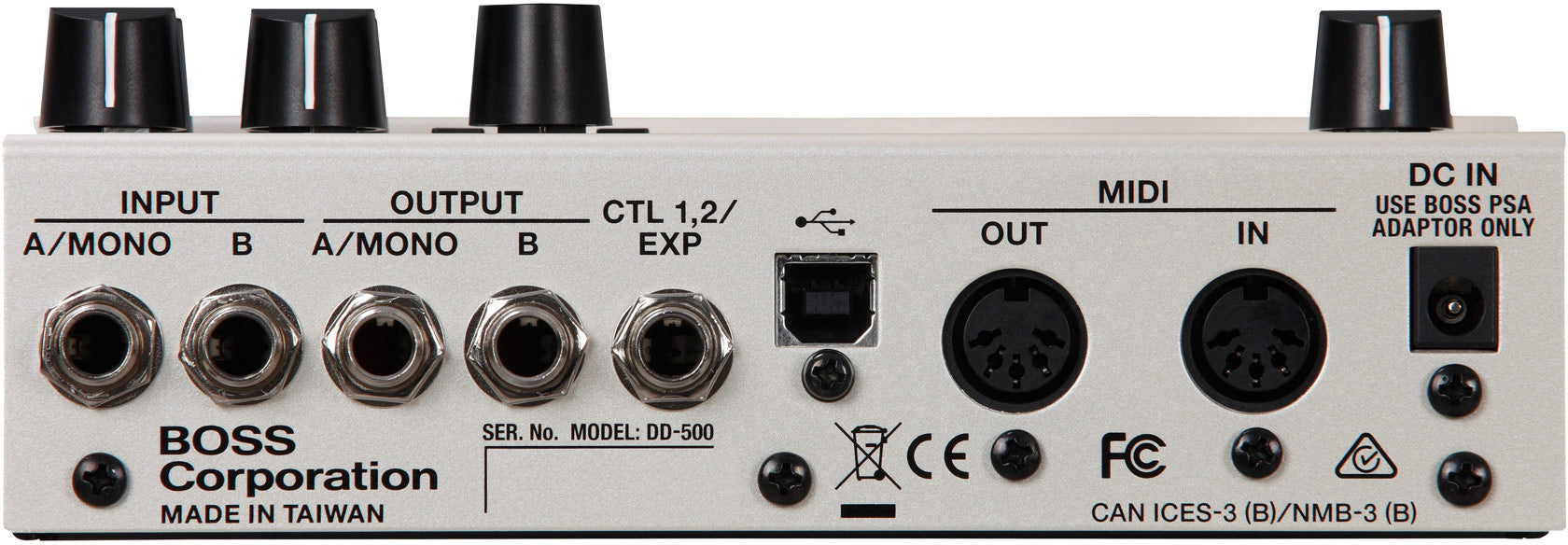

Connectors: INPUT A/MONO, B jacks: 1/4-inch phone type, OUTPUT A/MONO, B jacks: 1/4-inch phone type, CTL 1,2/EXP jack: 1/4-inch TRS phone type, USB COMPUTER port: USB type B USB-MIDI, MIDI (IN, OUT) connectors, DC IN jack
Power Supply: Alkaline battery (AA, LR6) x 4, AC adaptor
Current Draw: 200 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.): Alkaline: Approx. 7 hours
