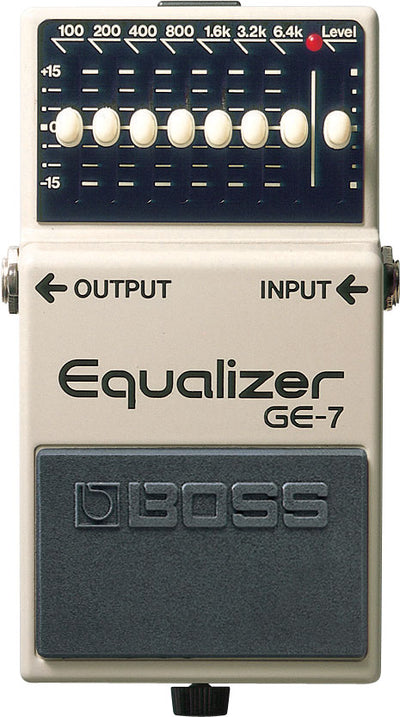

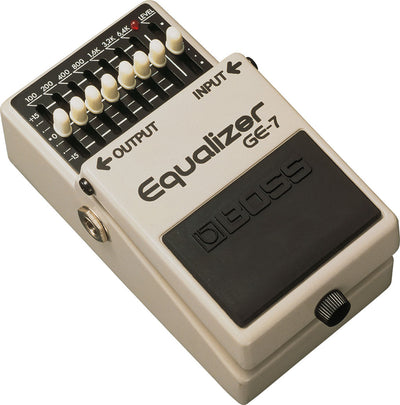

Boss GE-7 Graphic Equalizer

The GE-7 Equalizer pedal offers seven bands of EQ ranging from 100Hz to 6.4kHz, ideal for guitar sounds, with boost/cut of +/- 15dB per band. This lets you completely control your sound and eliminate unwanted feedback, particularly when connected after a distortion effect.

Nominal Input Level: -20 dBu
Input Impedance: 470 k ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohm or greater
Bypass: Buffered bypass
Controls: Level Control knob; Equalizer Control knob; 100, 200, 400, 800, 1.6 k, 3.2 k, 6.4 kHz; Pedal switch
Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors: INPUT jack: 1/4-inch phone type; OUTPUT jack: 1/4-inch phone type; DC IN jack
Power Supply: Carbon-zinc battery (9 V, 6F22); Alkaline battery (9 V, 6LR61); AC adaptor (PSA series: sold separately)
Current Draw: 10 mA
