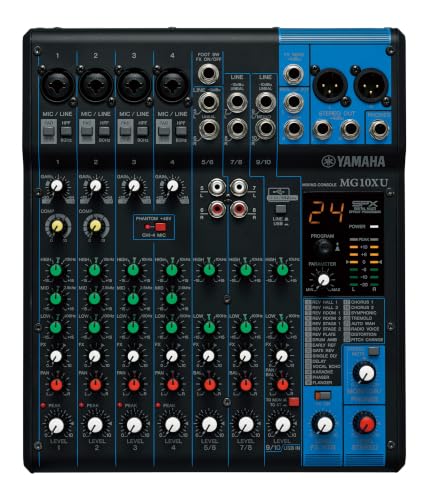

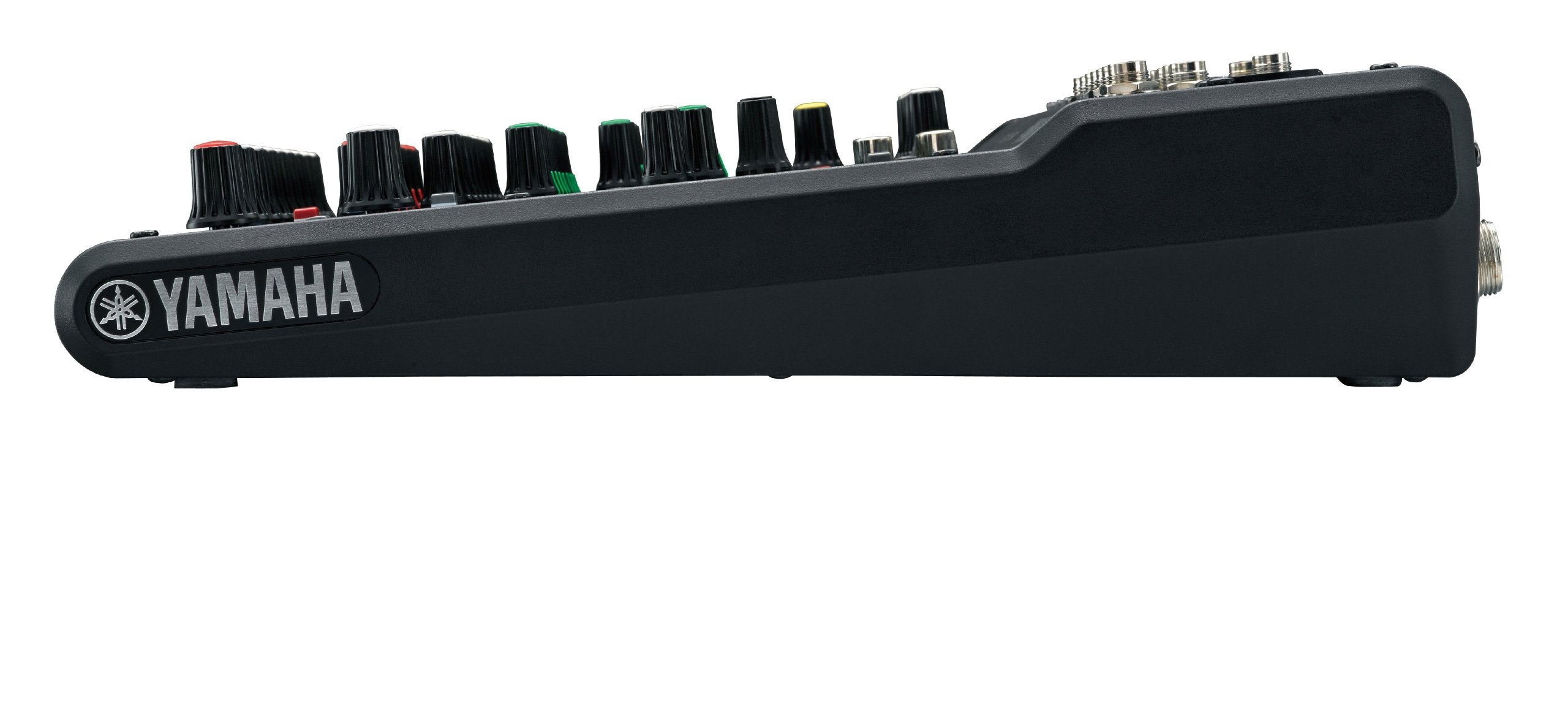

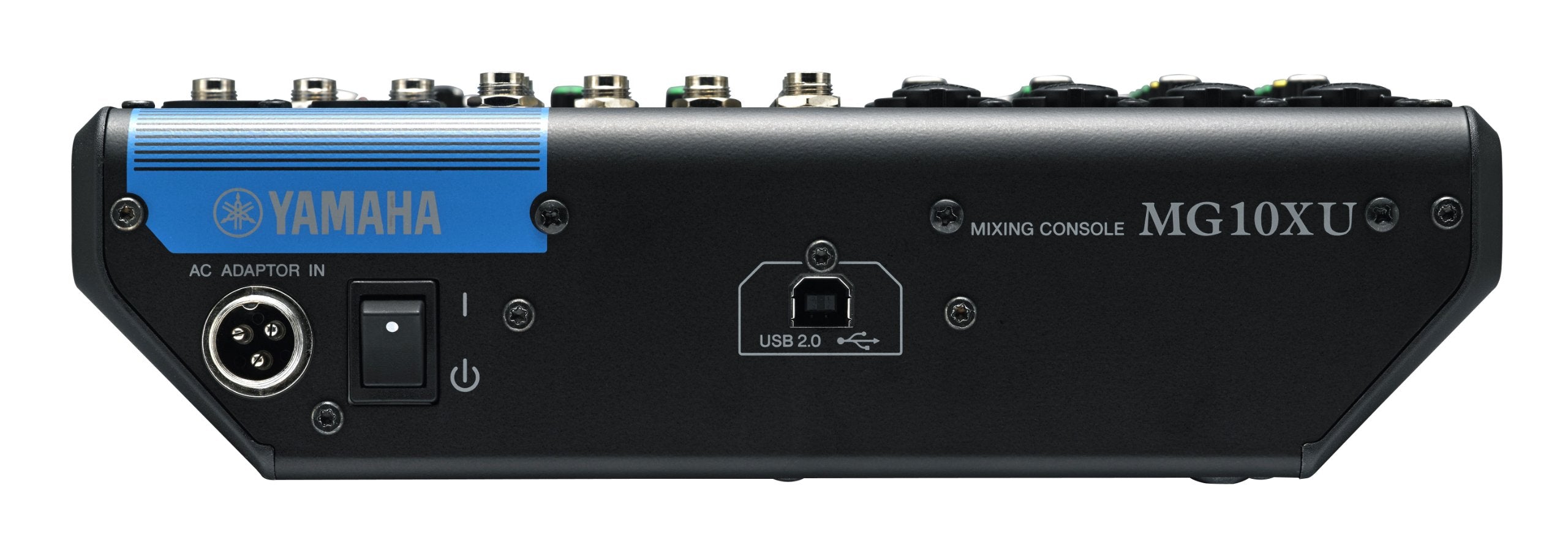

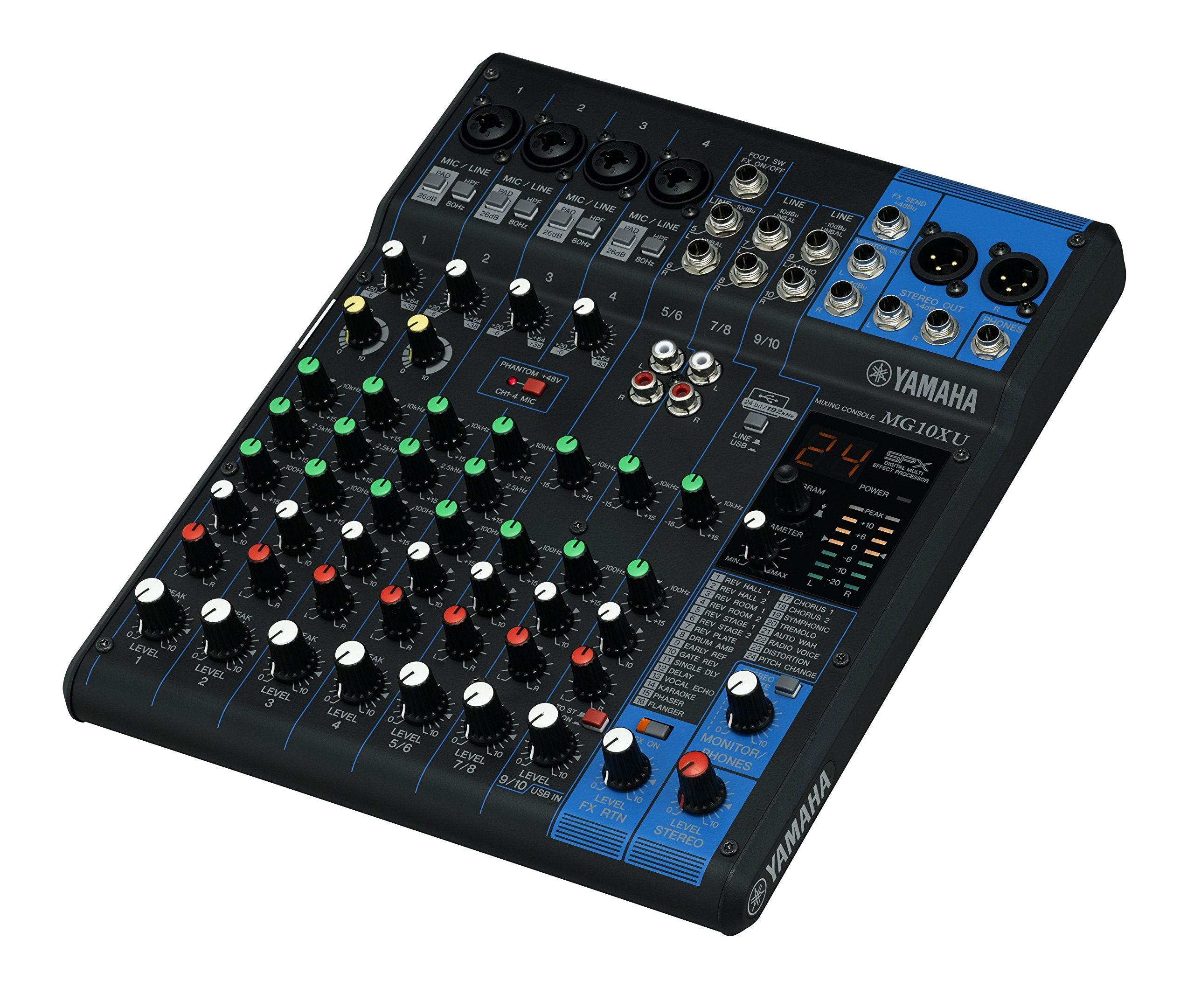

Yamaha MG10XU Mixer with Effects

D-PRE CLASS-A PREAMPS: Four D-PRE Class-A microphone preamps deliver clean, natural sound with low noise, while 3-band EQ gives you precise control over vocals and instruments

24 BUILT-IN SPX EFFECTS: Add professional reverb, delay, and other SPX effects directly from the mixer without needing external processing equipment

1-KNOB COMPRESSORS: Channels 1 and 2 feature Yamaha's 1-Knob Compressors, making it easy to achieve balanced vocals and instruments with a single control

24-BIT USB AUDIO INTERFACE: Record 2-in/2-out audio directly to your computer or compatible iPad with a built-in 24-bit/192kHz USB interface for recording and streaming

READY TO RECORD: A durable metal chassis, Cubase AI recording software download, and flexible connectivity make the MG10XU a dependable choice for studio recording, live sound, podcasting, and content creation

The Yamaha MG10XU combines professional mixing, built-in effects, and USB recording in a compact mixer designed for musicians, content creators, podcasters, and live sound applications. Four D-PRE Class-A microphone preamps capture vocals and instruments with clean, natural detail, while three stereo line channels provide flexible connectivity for keyboards, playback devices, and additional audio sources.

Twenty-four built-in SPX effects let you add professional-quality reverb, delay, and other processing without external equipment. Yamaha's 1-Knob Compressors on channels 1 and 2 make it easy to control dynamics for vocals and instruments, while 3-band EQ and high-pass filters help you quickly shape your mix.

The integrated 24-bit/192kHz USB audio interface makes recording and streaming simple, allowing direct connection to your computer or compatible iPad. A download of Cubase AI recording software is included, giving you the tools to begin producing music right away.

Built with a rugged metal chassis for dependable performance, the MG10XU is equally at home in project studios, rehearsal spaces, live venues, podcast setups, and streaming environments.

Key Specifications
Channels: 10 (4 Mono Mic/Line + 3 Stereo Line)
Preamps: Yamaha D-PRE Class-A
EQ: 3-Band (Mono Channels)
Compression: 1-Knob COMP (Channels 1 & 2)
Effects: 24 SPX Programs
Phantom Power: +48V
USB Audio: 24-bit/192kHz, 2-In/2-Out
Software: Cubase AI Download
Outputs: Stereo XLR/TRS, Monitor Out, Phones, AUX/FX Send
Construction: Metal Chassis
Dimensions: 9.6 × 2.8 × 11.6 in.
Weight: 4.63 lb

Outline
Mixing capability: On-board processors: SPX algorithm: 24 programs
I/O: Phantom power: +48 V
: Digital I/O: USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels: Mono[MIC/LINE]: 4
: Stereo[LINE]: 3
Output Channels: STEREO OUT: 2
: MONITOR OUT: 1
: PHONES: 1
: AUX SEND: 1
Bus: Stereo: 1, AUX[FX]: 1
Input Channel Function: PAD: 26 dB (Mono)
: HPF: 80 Hz, 12 dB/oct (Mono)
: COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
: EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
: EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
: EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
: PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
: Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
General specifications
Total harmonic distortion: 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response: +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level: Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150?, GAIN knob: Max)
: Residual output noise: -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk: -83 dB
Power requirements: PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption: 22.9 W
Dimensions: W: 244 mm (9.6")
: H: 71 mm (2.8")
: D: 294 mm (11.6")
Net weight: 2.1 kg (4.63 lbs.)
Accessories: Included Accessory: AC Adaptor, Owner's Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5
Others: Operating Temperature: 0 to +40?C
