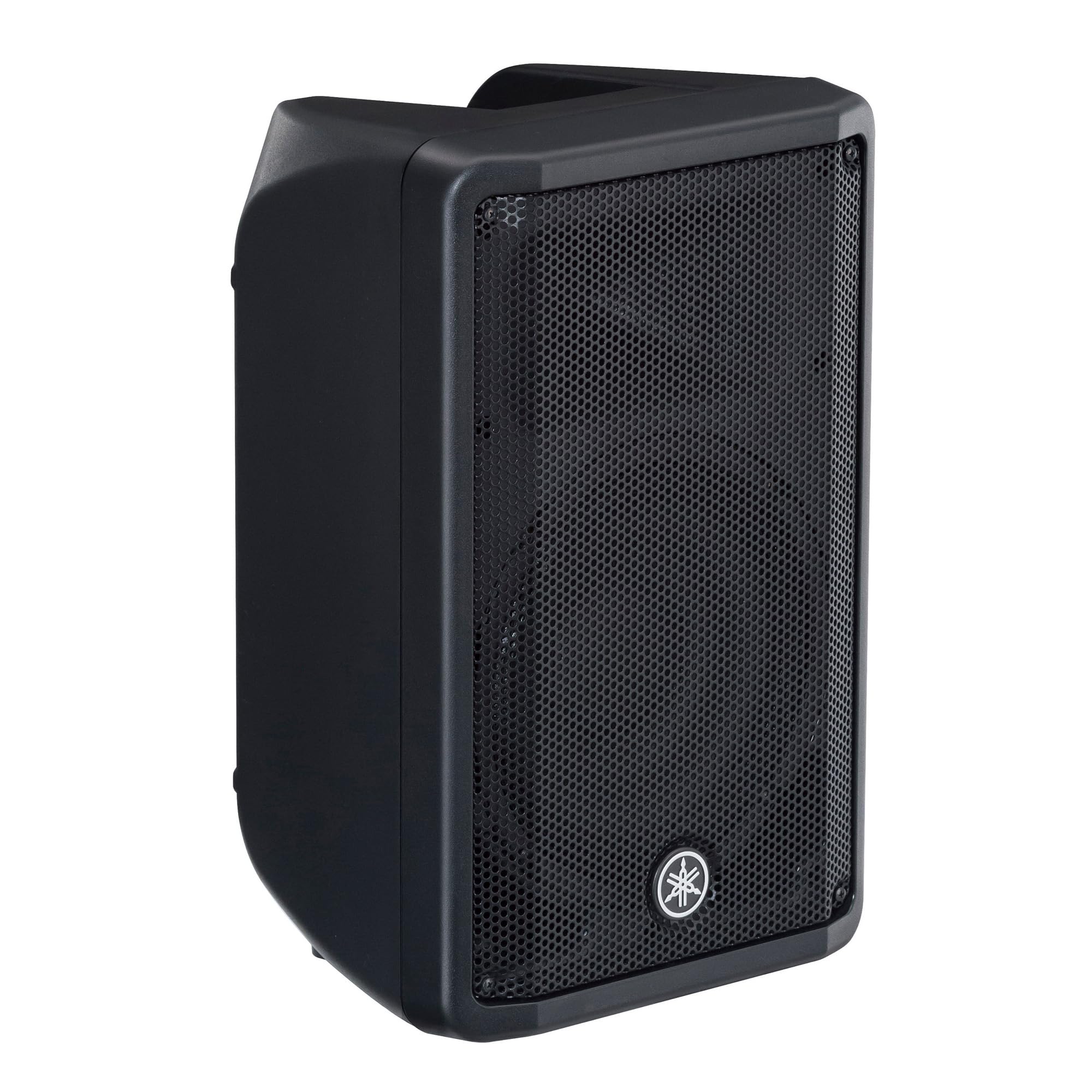

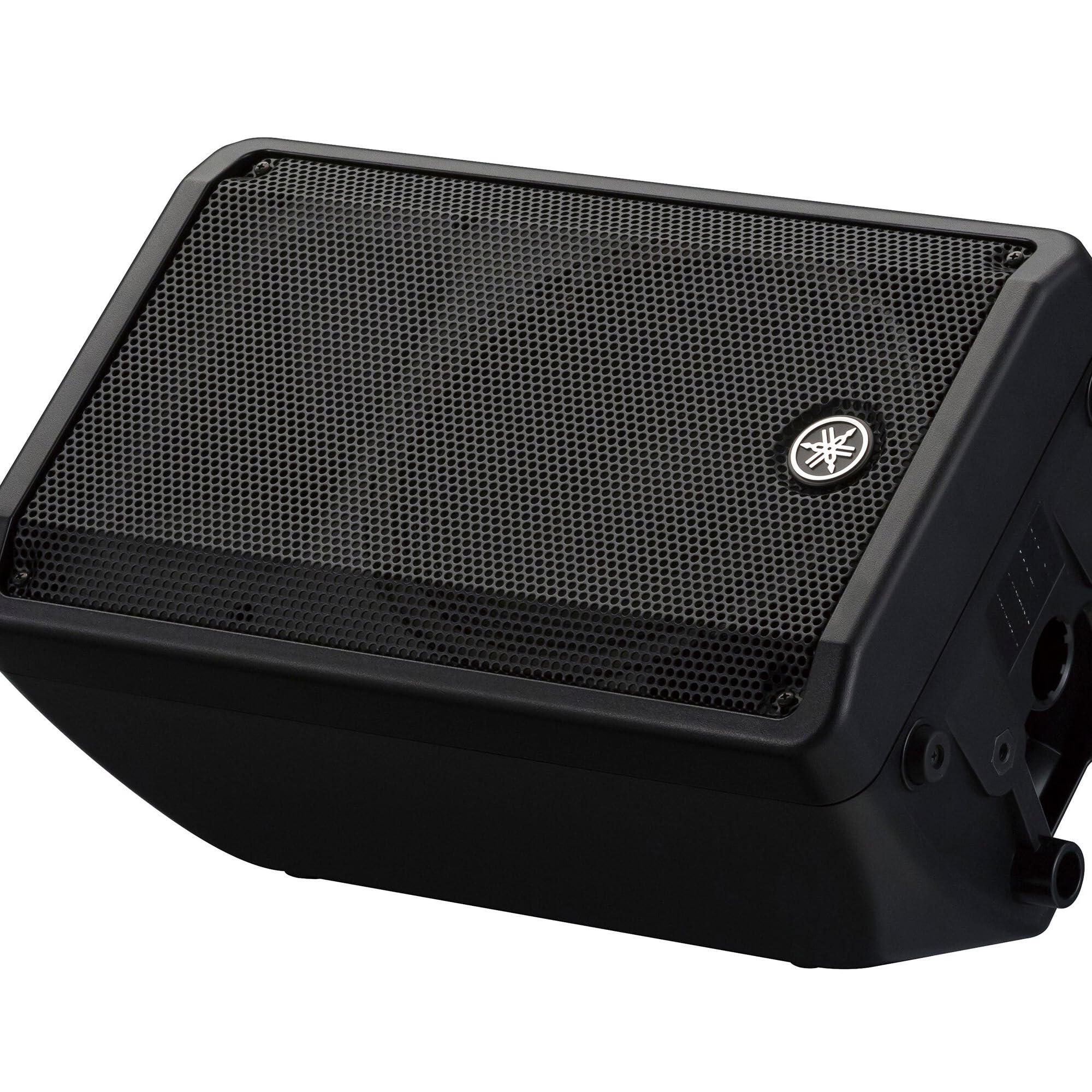

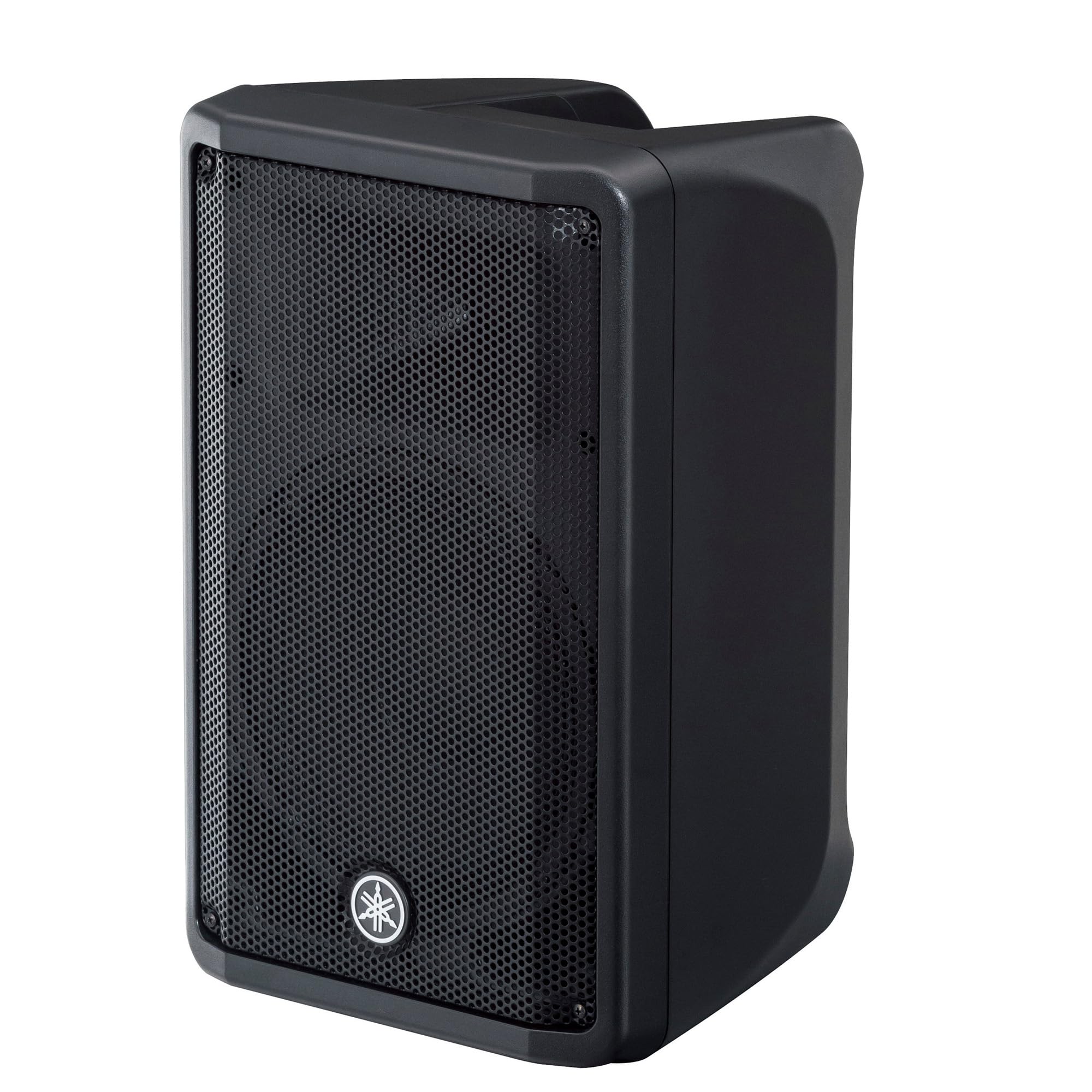

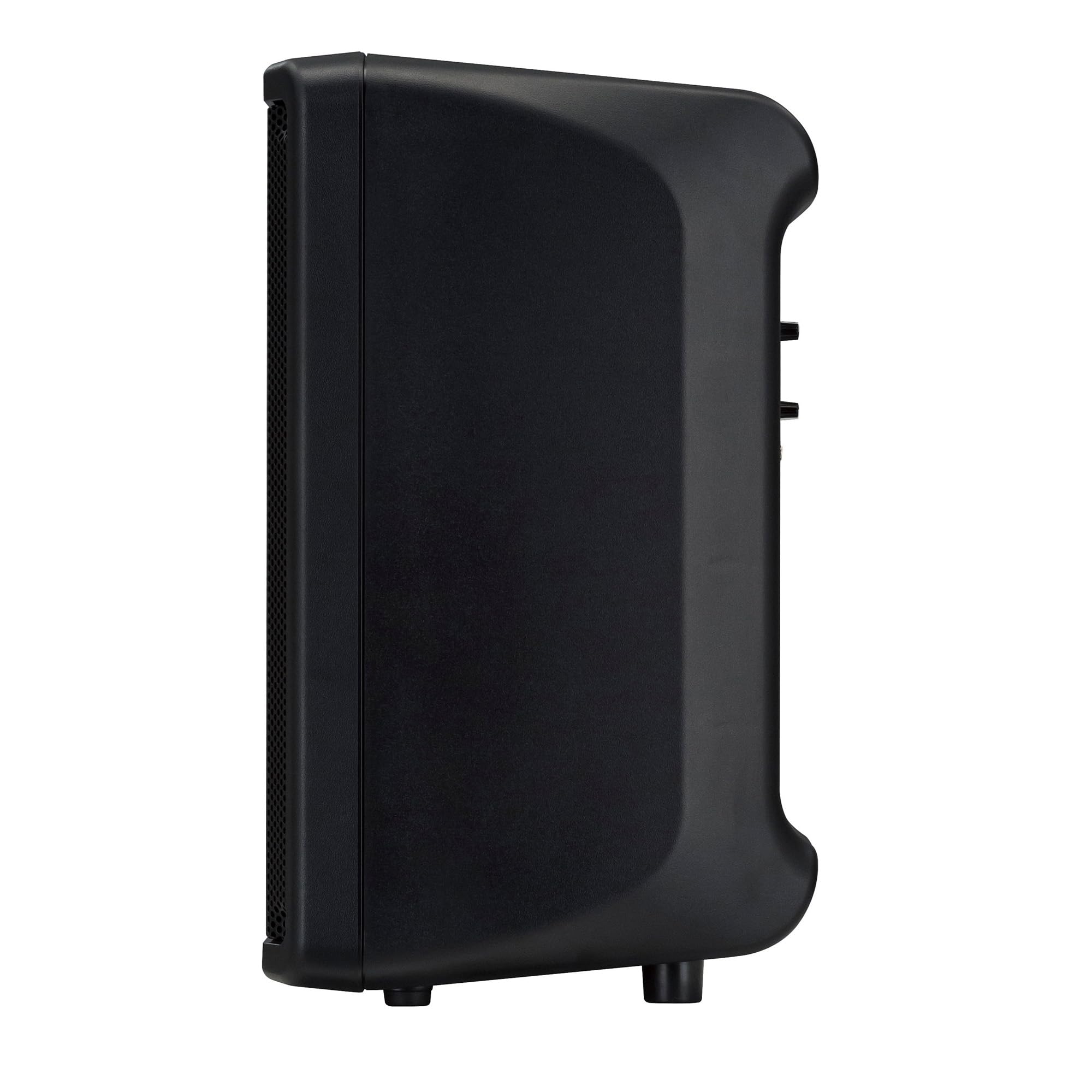

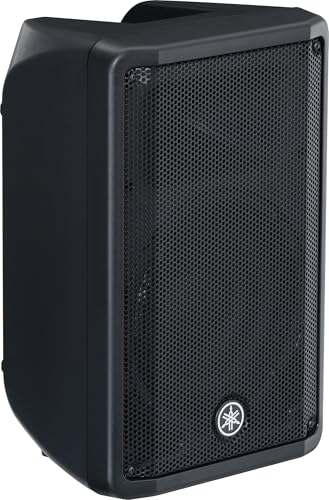

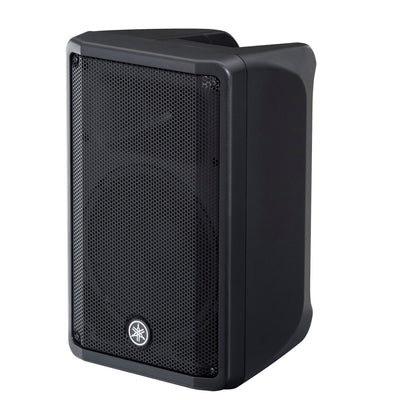

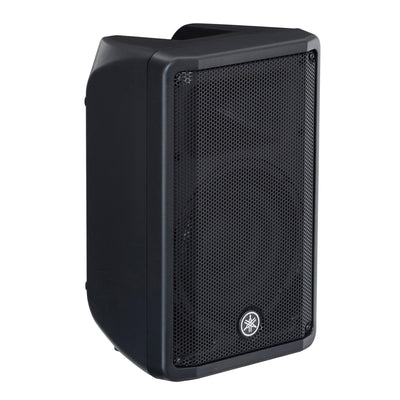

Yamaha DBR10 700-Watt 10-Inch Powered Loudspeaker

COMPACT HIGH OUTPUT: The most compact model in the DBR Series delivers up to 129 dB SPL with a 700W Class-D amplifier for powerful sound reinforcement

CUSTOM-DESIGNED TRANSDUCERS: Features a 10-inch woofer, 1-inch compression driver, and Yamaha's FIR-X tuning for clear, balanced sound reproduction

BUILT-IN 2-CHANNEL MIXER: Includes onboard mic and line-level inputs with selectable CH1 Parallel Through or CH1+CH2 Mix output for flexible connectivity

D-CONTOUR PROCESSING: Intelligent multiband dynamic processing optimizes sound for FOH/MAIN or MONITOR applications with a simple switch selection

LIGHTWEIGHT PORTABLE DESIGN: Durable cabinet with an ergonomic top handle, 35 mm pole socket, and M8 mounting points for easy transport and versatile installation

The Yamaha DBR10 is the most compact model in the DBR Series, delivering powerful, high-quality sound in a lightweight and durable enclosure. Designed for versatile sound reinforcement, this 10-inch, 2-way bi-amp powered loudspeaker produces up to 129 dB SPL with a 700W Class-D amplifier. Yamaha's custom-designed transducers and FIR-X tuning provide clear, balanced audio, while the built-in 2-channel mixer and D-CONTOUR intelligent multiband dynamic processing offer flexible operation for both front-of-house and floor monitor applications.

Speaker Type: 2-Way Bi-Amp Powered Speaker, Bass-Reflex Type
LF Driver: 10" Cone, 2" Voice Coil
HF Driver: 1" Compression Driver
Frequency Range: 55 Hz–20 kHz
Coverage: H90° × V60°
Amplifier Output: Dynamic 700W / Continuous 325W
Maximum SPL: 129 dB SPL
Crossover Frequency: 2.1 kHz, FIR-X tuning™

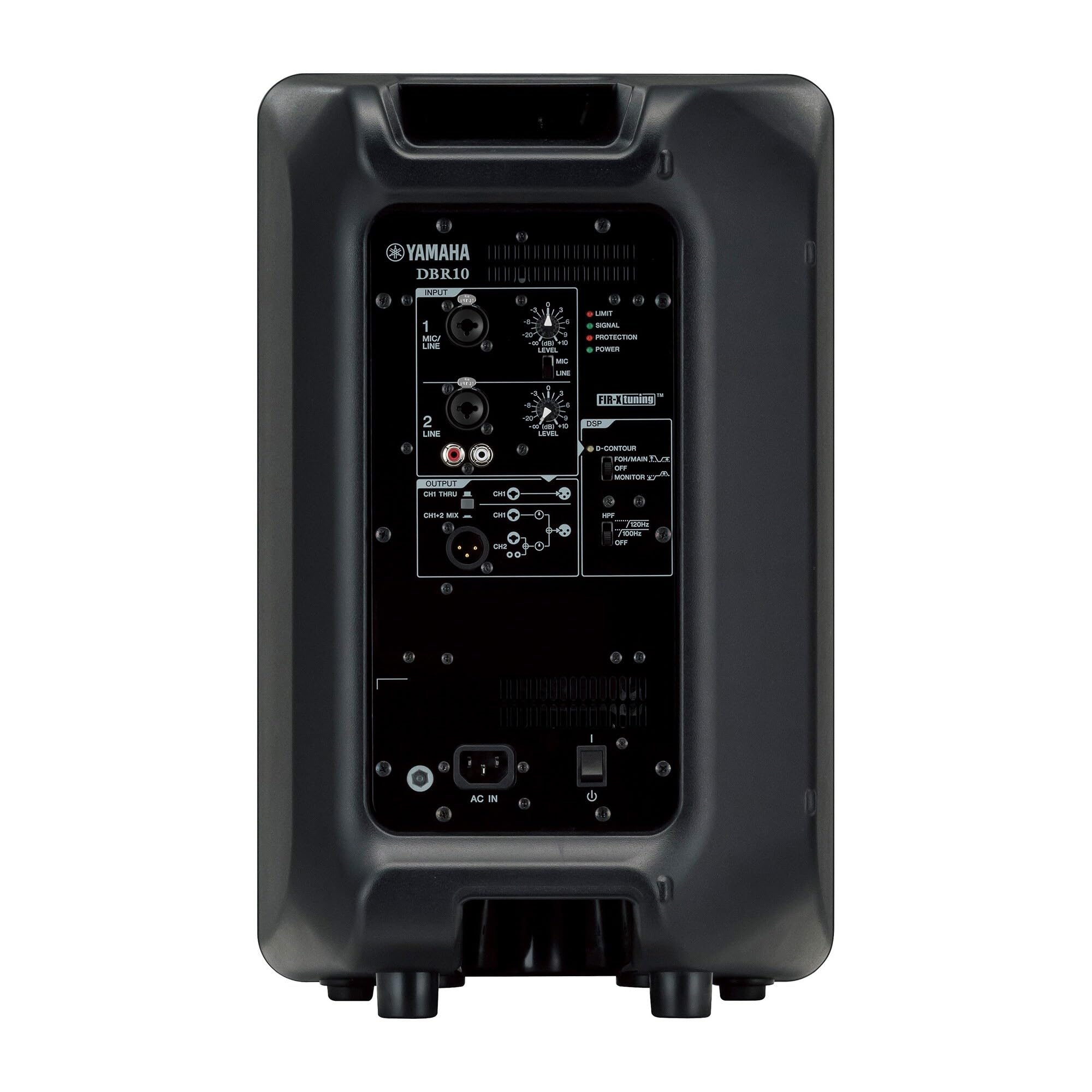

Inputs: INPUT1: Combo ×1; INPUT2: Combo ×1 + RCA Pin ×2
Outputs: XLR3-32 ×1 (CH1 Parallel Through or CH1+CH2 Mix)
Processor: D-CONTOUR (FOH/MAIN, MONITOR, OFF)
Pole Socket: 35 mm
Rigging Points: M8 ×2 (Bottom)
Dimensions (W × H × D): 308 × 493 × 289 mm (12.1" × 19.4" × 11.4")
Weight: 10.5 kg (23.2 lb)
Finish: Black
